Technical Details
| Case/Package | DIP |
| Data Rate | 2.5Mbps |
| Height | 4.45mm |
| Interface | RS-422, RS-485 |
| Lead Free | Contains Lead |
| Length | 9.91mm |
| Logic Function | Transceiver |
| Max Operating Temperature | 85°C |
| Max Power Dissipation | 727mW |
| Max Supply Voltage | 5.25V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4.75V |
| Mount | Through Hole |
| Nominal Supply Current | 900µA |
| Number of Drivers | 1 |
| Number of Pins | 8 |
| Number of Receivers | 1 |
| Number of Transceivers | 1 |
| Number of Transmitters | 1 |
| Operating Supply Voltage | 5V |
| Output Voltage | 12.5V |
| Radiation Hardening | No |
| REACH SVHC | Unknown |
| Simplex/Duplex | Half Duplex |
| Width | 7.87mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Unknown

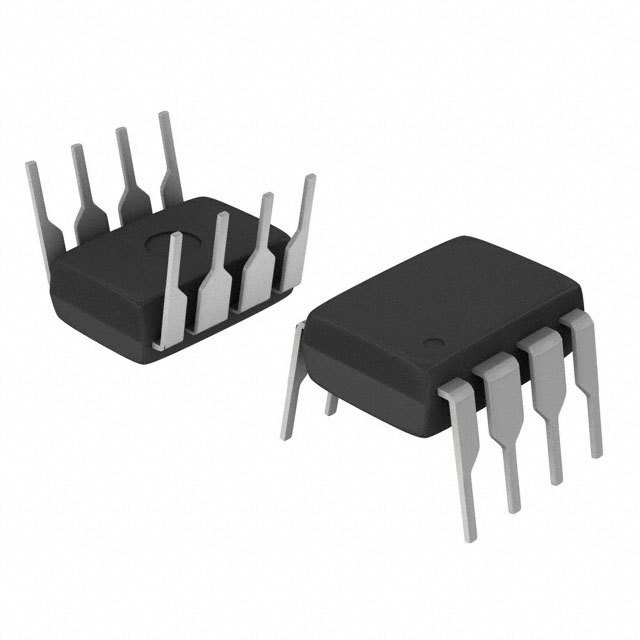

Images
Augswan
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| STMicroelectronics | Obsolete | ||
| STMicroelectronics | Obsolete | ||
| Analog Devices / Linear Technology | Unknown | ||
| Analog Devices | Unknown | ||
| Analog Devices / Linear Technology | Obsolete | ||
| STMicroelectronics | Obsolete | ||
| Analog Devices / Linear Technology | Unknown | ||
| Analog Devices | Unknown | ||
| STMicroelectronics | Obsolete | ||
| STMicroelectronics | Obsolete |
