IRF5210LPBF - Infineon
Mosfet, Power; P-ch; Vdss -100V; Rds(on) 0.06 Ohm; Id -40A; TO-262; Pd 200W; Vgs +/-20V
Technical Details
| Case/Package | TO-262 |
| China RoHS | Non-Compliant |
| Continuous Drain Current (ID) | 38A |
| Current Rating | -40A |
| Drain to Source Breakdown Voltage | -100V |
| Drain to Source Resistance | 60mΩ |
| Drain to Source Voltage (Vdss) | -100V |
| Dual Supply Voltage | 100V |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Fall Time | 55ns |
| Gate to Source Voltage (Vgs) | 20V |
| Height | 15.1mm |
| Input Capacitance | 2.7nF |
| Introduction Date | 1996-06-01 |
| Lead Free | Contains Lead |
| Length | 10.54mm |
| Lifecycle Status | Obsolete |
| Max Junction Temperature (Tj) | 150°C |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 170W |
| Min Breakdown Voltage | 100V |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Nominal Vgs | 4V |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Pins | 3 |
| Number of Terminals | 3 |
| On-State Resistance | 60mΩ |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Power Dissipation | 3.1W |
| Radiation Hardening | No |
| Rds On Max | 60mΩ |
| REACH SVHC | No |
| Resistance | 60mΩ |
| Rise Time | 63ns |
| RoHS | Compliant |
| Schedule B | 8541290080, 8541290080|8541290080|8541290080|8541290080|8541290080 |
| Termination | SMD/SMT |
| Threshold Voltage | 4V |
| Turn-Off Delay Time | 72ns |
| Turn-On Delay Time | 14ns |
| Voltage Rating (DC) | -100V |
| Width | 4.69mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

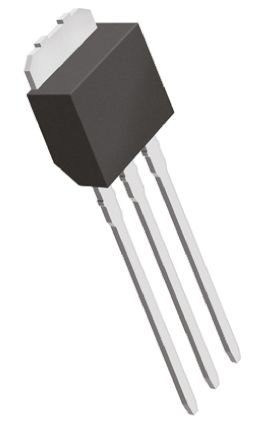

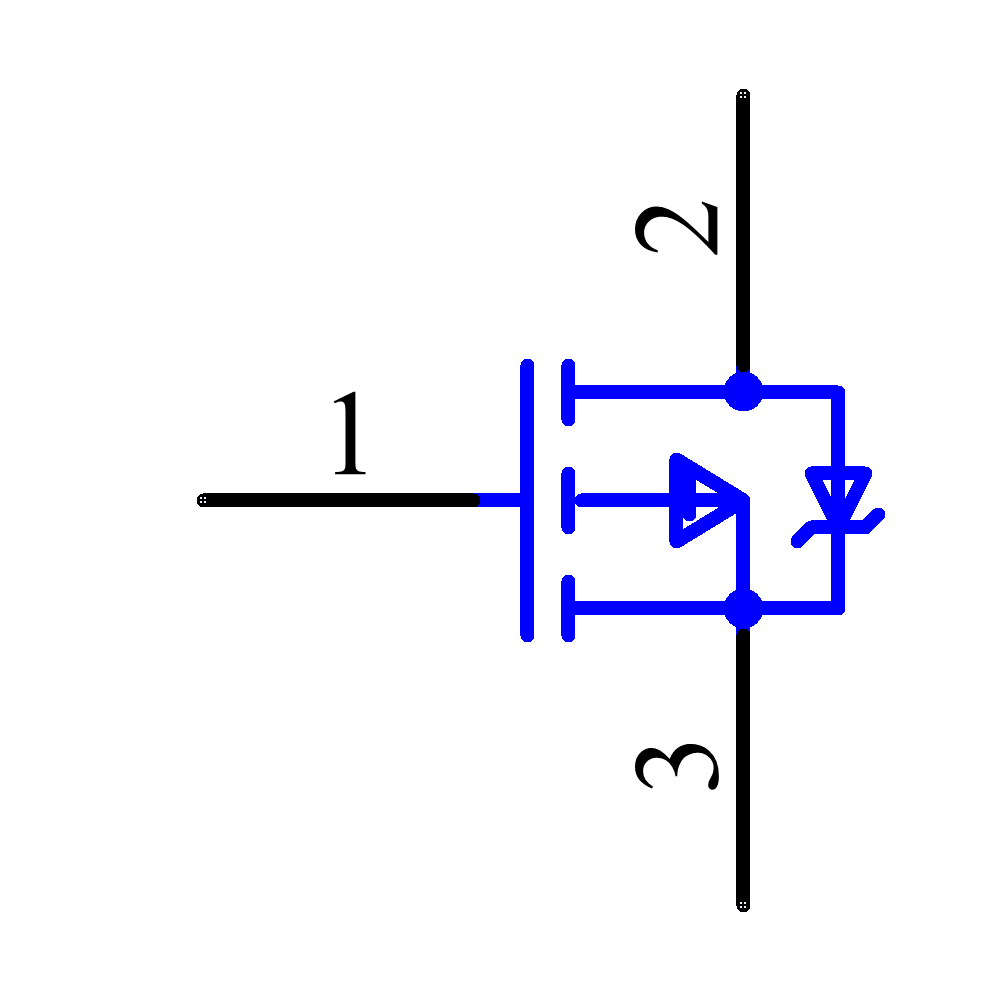

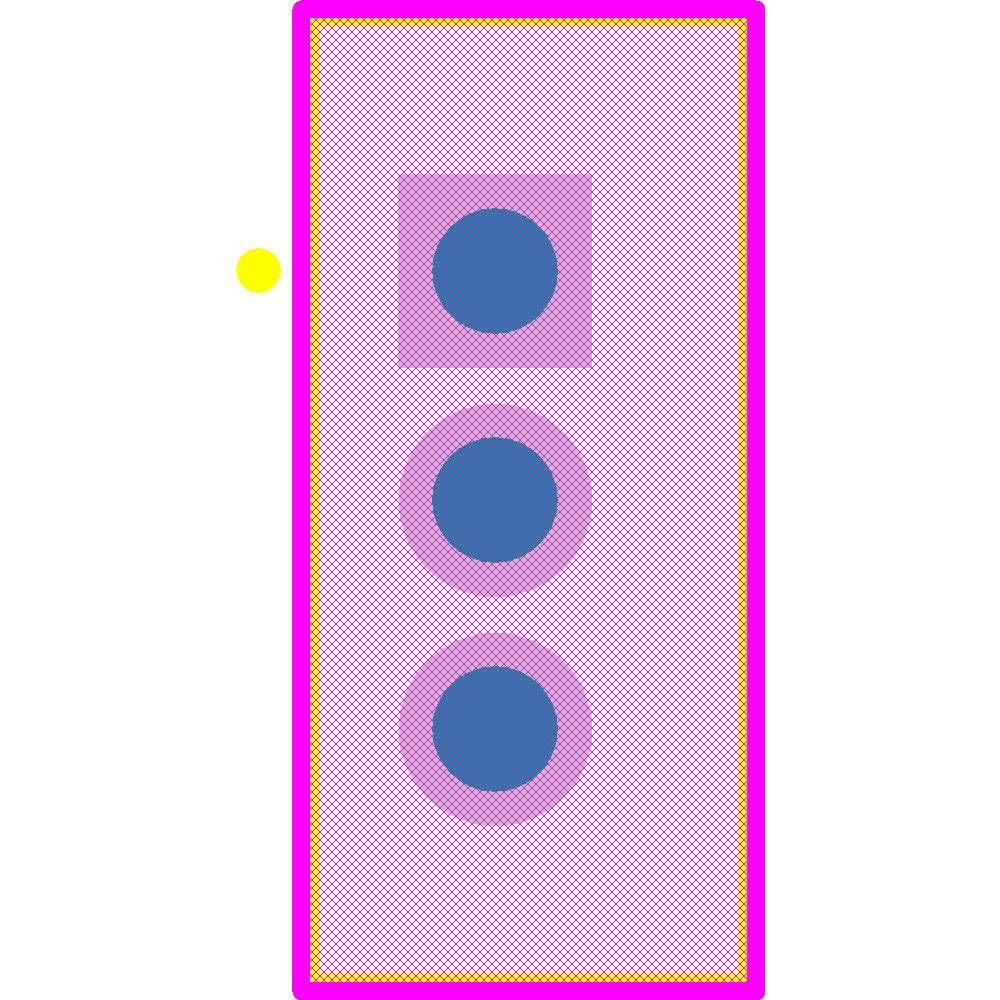

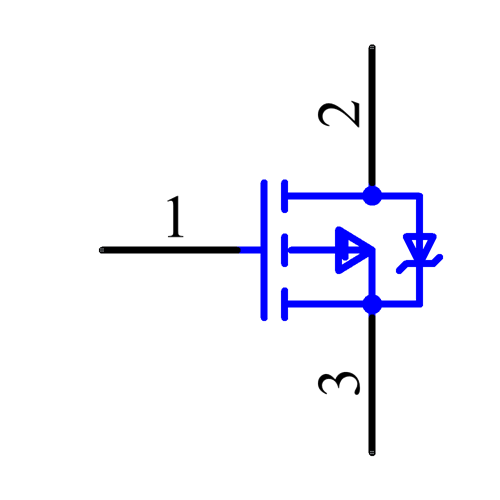

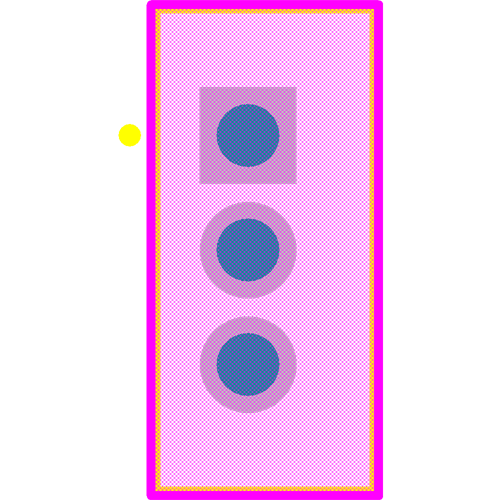

Images
RS
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| International Rectifier | Obsolete | ||
| Infineon | Production | ||
| Littelfuse | Production | ||
| Infineon | Obsolete | ||
| Infineon | Obsolete | ||
| Infineon | Production | ||
| Infineon | Obsolete | ||
| Infineon | Obsolete | ||
| Vishay | Obsolete | ||
| Infineon | Obsolete |
