2N3440 - Microchip
TRANS NPN 250V 1A TO39 Bipolar (BJT) Transistor NPN 250 V 1 A 800 mW Through Hole TO-39 (TO-205AD)
Technical Details
| Projected EOL Date | 2049-02-05 |
| Case/Package | TO-39 |
| Collector Base Voltage (VCBO) | 300V |
| Collector Emitter Breakdown Voltage | 250V |
| Collector Emitter Saturation Voltage | 500mV |
| Collector Emitter Voltage (VCEO) | 250V |
| Country of Assembly | Philippines |
| Country of Fabrication | United States of America |
| Country of Origin | PHL |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Emitter Base Voltage (VEBO) | 7V |
| Height | 6.6mm |
| hFE Min | 40 |
| Harmonized Tariff Schedule (HTS) Code | 8541.21.0095 |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | REL |
| Max Collector Current | 1A |
| Max Junction Temperature (Tj) | 200°C |
| Max Operating Temperature | 200°C |
| Max Power Dissipation | 800mW |
| Min Operating Temperature | -65°C |
| Mount | Through Hole |
| Number of Elements | 1 |
| Polarity | NPN |
| Power Dissipation | 800mW |
| Radiation Hardening | No |
| RoHS | Non-Compliant |
| Schedule B | 8541210080, 8541210080|8541210080, 8541210080|8541210080|8541210080, 8541210080|8541210080|8541210080|8541210080 |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

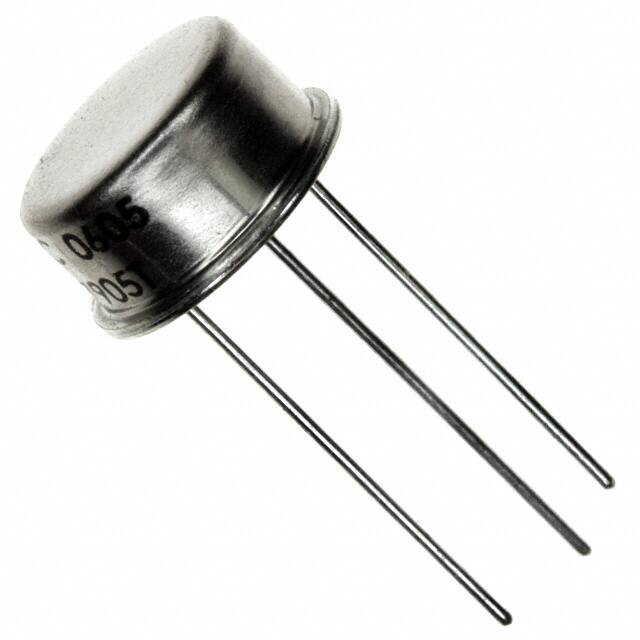

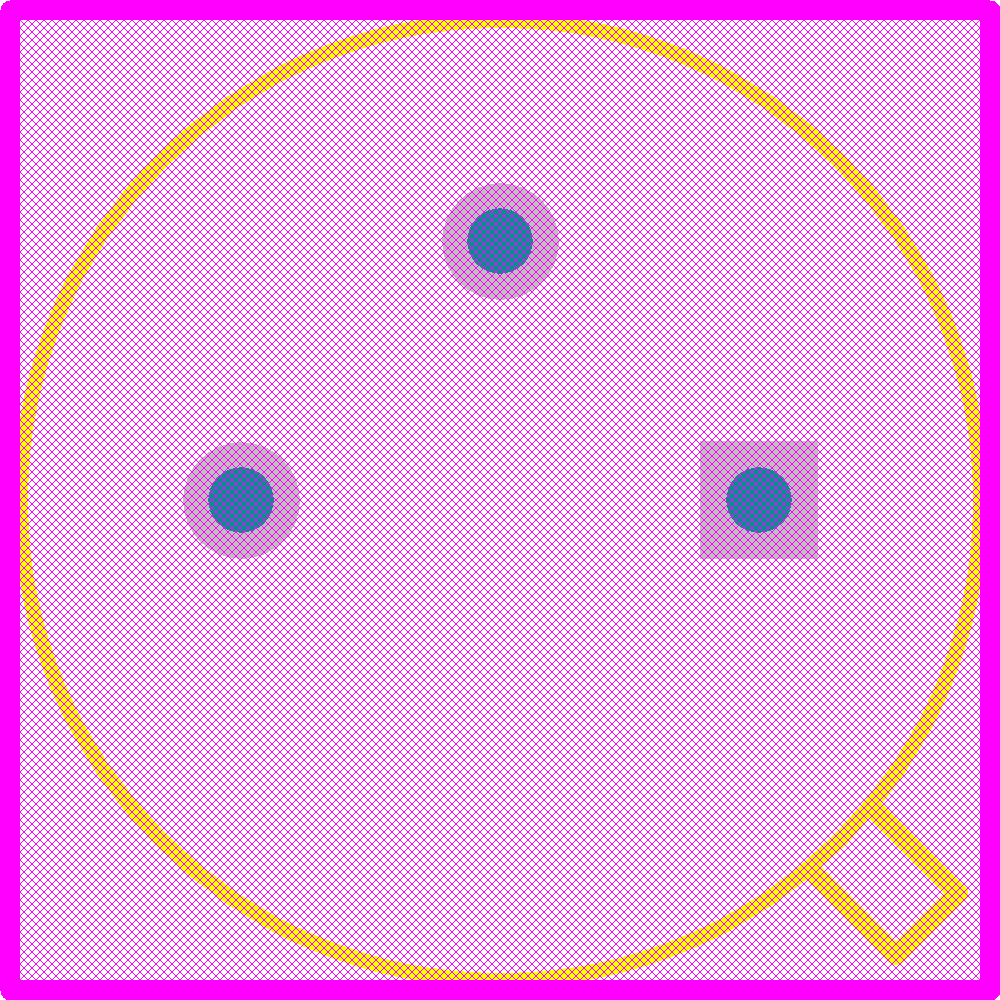

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| STMicroelectronics | Obsolete | ||
| Texas Instruments | Obsolete | ||
| Microchip | Production | ||
| Central Semiconductor | Production | ||
| Central Semiconductor | Production | ||
| CDIL | Unknown | ||
| STMicroelectronics | Obsolete | ||
| STMicroelectronics | Obsolete | ||
| STMicroelectronics | Obsolete | ||
| onsemi | Obsolete |
