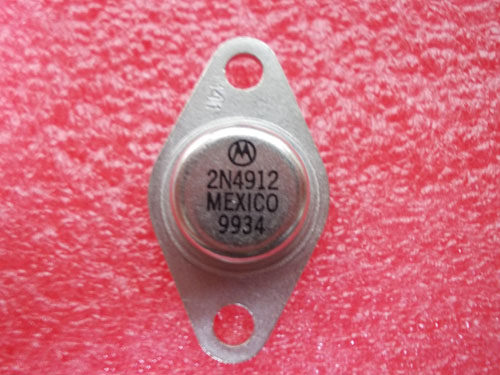

2N4912 - Motorola
Power Bipolar Transistor, 1A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon, TO-213AA, Metal, 2 Pin
Technical Details
| Body Material | Metal |
| Collector Emitter Saturation Voltage | 600mV |
| Collector Emitter Voltage (VCEO) | 80V |
| Export Control Classification Number (ECCN) Code | EAR99 |
| hFE Min | 20 |
| Lifecycle Status | Obsolete |
| Max Collector Current | 1A |
| Max Operating Temperature | 175°C |
| Max Power Dissipation | 25W |
| Number of Elements | 1 |
| Number of Terminals | 2 |
| Power Dissipation | 25W |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Transition Frequency | 3MHz |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes
