Technical Details
| Case/Package | DPAK |
| Contact Plating | Tin |
| Continuous Drain Current (ID) | 40A |
| Country of Origin | Mainland China |
| Drain to Source Resistance | 16mΩ |
| Drain to Source Voltage (Vdss) | 40V |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Fall Time | 73ns |
| Gate to Source Voltage (Vgs) | 20V |
| Halogen Free | Halogen Free |
| Height | 1.5mm |
| Input Capacitance | 1.63nF |
| Introduction Date | 2011-03-18 |
| Lead Free | Lead Free |
| Length | 6.5mm |
| Lifecycle Status | Obsolete |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 40W |
| Min Breakdown Voltage | 40V |
| Min Operating Temperature | -55°C |
| Number of Elements | 1 |
| Number of Pins | 3 |
| Number of Terminals | 2 |
| Packaging | Tape and Reel |
| Power Dissipation | 40W |
| Rds On Max | 16mΩ |
| REACH SVHC | No |
| Resistance | 16mΩ |
| Rise Time | 110ns |
| RoHS | Compliant |
| Turn-Off Delay Time | 83ns |
| Turn-On Delay Time | 19ns |
| Width | 7.3mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : No

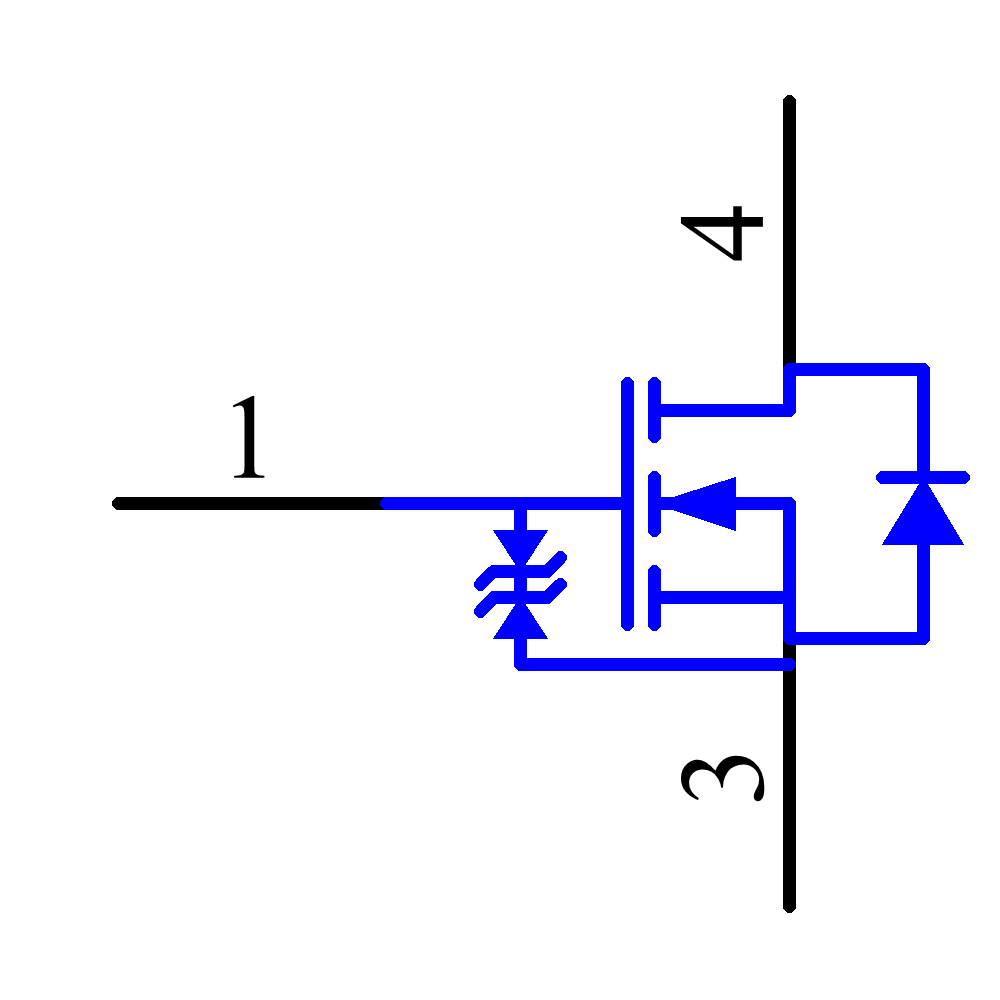

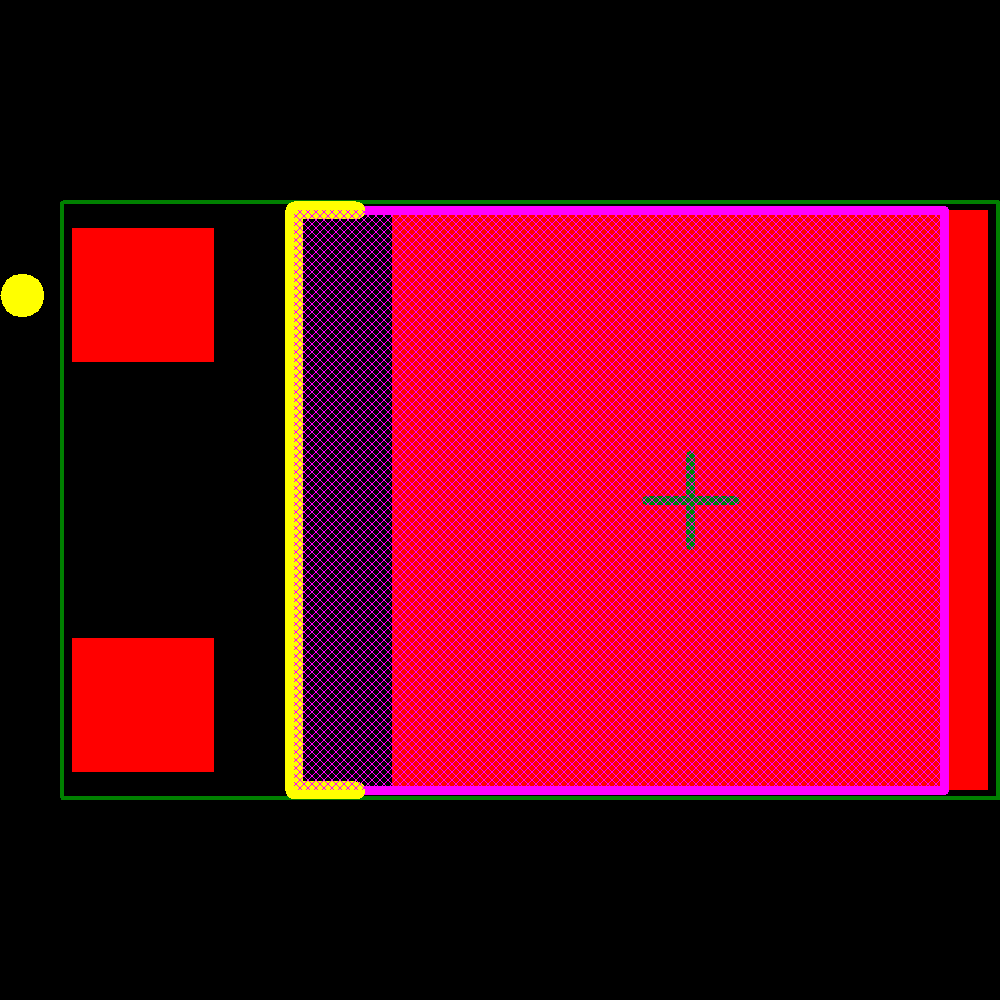

Images
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Rochester Electronics |
US: 15000
|
$ | 0.5019 | 0.4166 | 0.3714 | |||||
| Verical |
US: 15000
|
$ | 0.5208 | 0.4643 | ||||||
