Technical Details
| China RoHS | Non-Compliant |
| Contact Plating | Tin Bismuth |
| Continuous Drain Current (ID) | 40A |
| Country of Origin | Mainland China |
| Drain to Source Breakdown Voltage | 100V |
| Drain to Source Resistance | 33mΩ |
| Drain to Source Voltage (Vdss) | 100V |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Fall Time | 150ns |
| Gate to Source Voltage (Vgs) | 20V |
| Halogen Free | Halogen Free |
| Input Capacitance | 4nF |
| Introduction Date | 2012-06-25 |
| Lead Free | Lead Free |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 70W |
| Min Breakdown Voltage | 100V |
| Number of Elements | 1 |
| Number of Pins | 3 |
| Number of Terminals | 2 |
| Packaging | Tape and Reel |
| Power Dissipation | 70W |
| Rds On Max | 33mΩ |
| REACH SVHC | No |
| Resistance | 33mΩ |
| Rise Time | 125ns |
| RoHS | Compliant |
| Turn-Off Delay Time | 220ns |
| Turn-On Delay Time | 38ns |
Compliance
RoHS : Unconfirmed
REACH SVHC : No

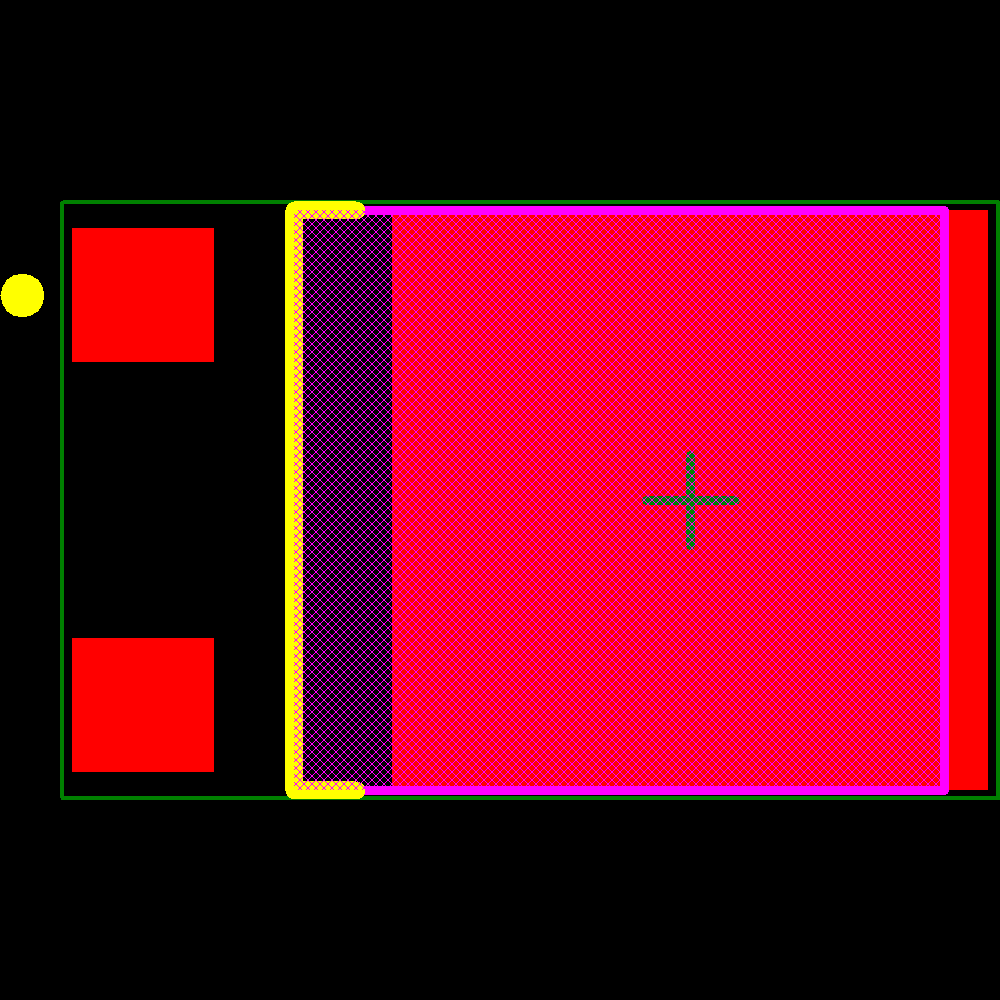

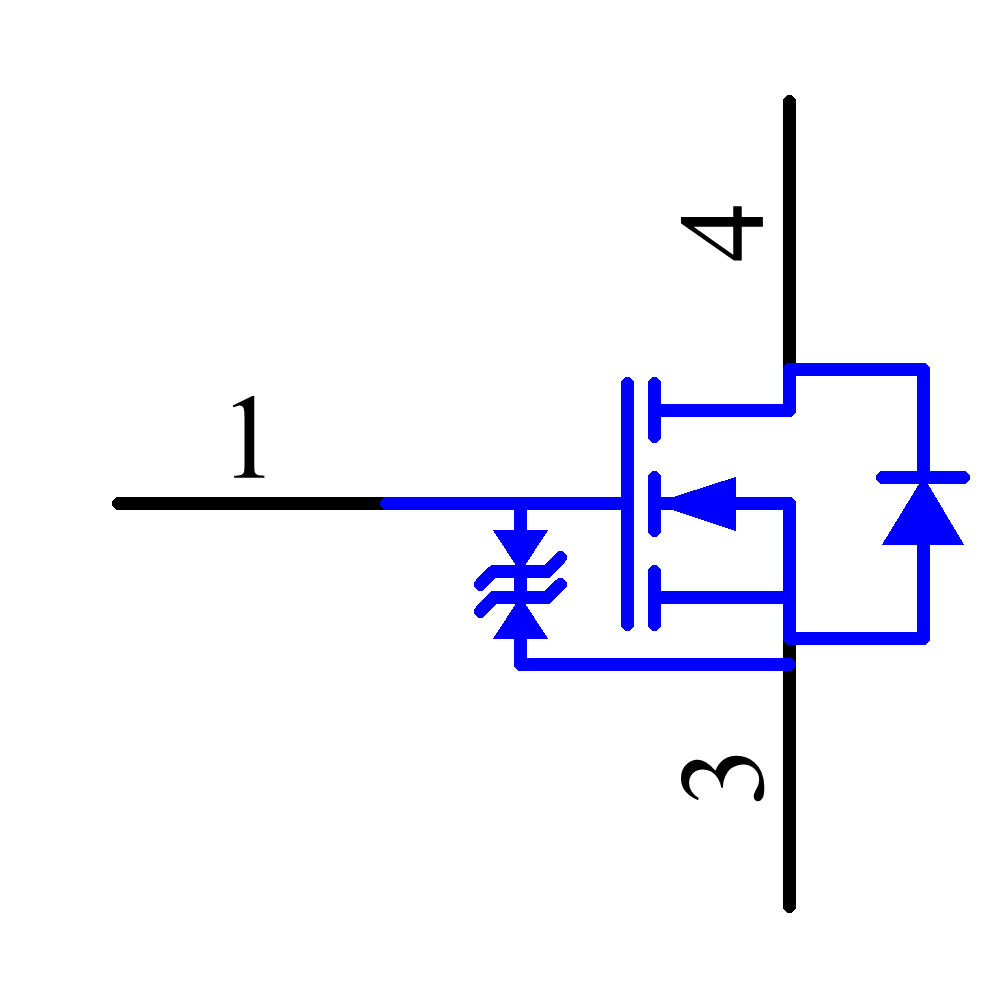

Images
