BD241CG - onsemi

3.0 A, 100 V, 40 W NPN Bipolar Power Transistor

Technical Details

Case/Package	TO-220-3
China RoHS	Non-Compliant
Collector Base Voltage (VCBO)	90V
Collector Emitter Breakdown Voltage	100V
Collector Emitter Saturation Voltage	1.2V
Collector Emitter Voltage (VCEO)	100V
Contact Plating	Tin
Country of Origin	Mainland China
Current Rating	3A
Export Control Classification Number (ECCN) Code	EAR99
Element Configuration	Single
Emitter Base Voltage (VEBO)	5V
Frequency	3MHz
Gain Bandwidth Product	3MHz
hFE Min	10
Introduction Date	1995-07-01
Lead Free	Lead Free
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Collector Current	3A
Max Operating Temperature	150°C
Max Power Dissipation	40W
Min Operating Temperature	-65°C
Number of Elements	1
Number of Pins	3
Number of Terminals	3
Polarity	NPN
Power Dissipation	40mW
Radiation Hardening	No
REACH SVHC	No
RoHS	Compliant
Schedule B	8541290080, 8541290080\|8541290080\|8541290080\|8541290080\|8541290080
Transition Frequency	3MHz
Voltage Rating (DC)	100V

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : No

Images

onsemi BD241CG | RS

RS

Datasheets

Lifecycle Status Indicator

Production

Symbol

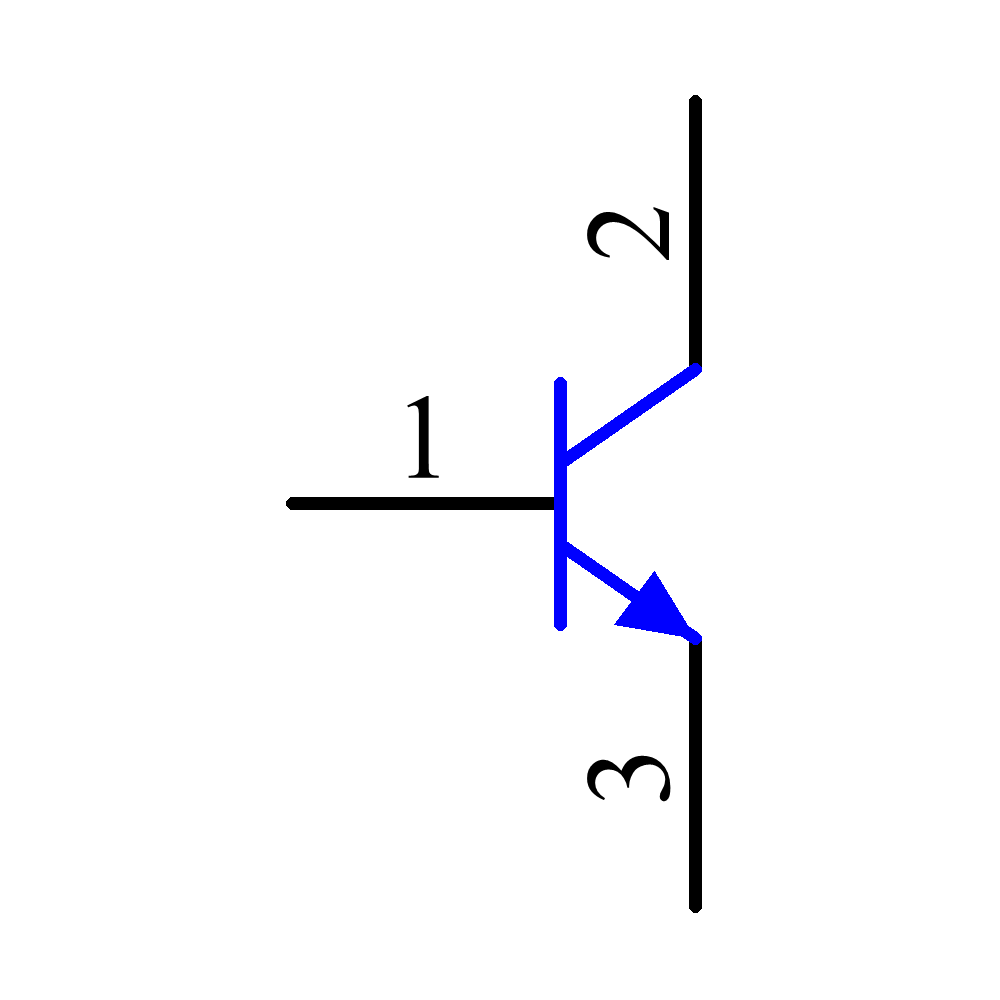

BD241CG Symbol - onsemi

BD241CG Symbol - onsemi

BD241CG Symbol - onsemi

BD241CG Symbol - onsemi

‹ ›

Footprint

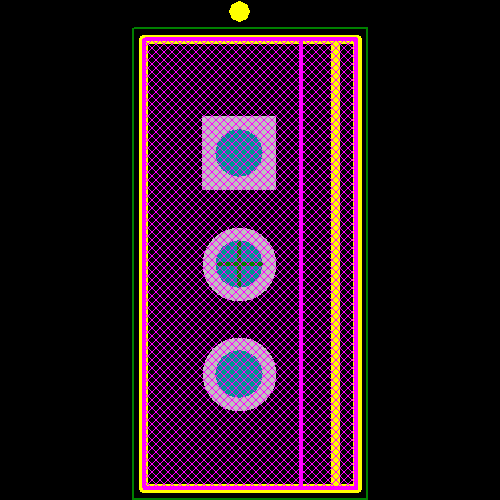

BD241CG Footprint - onsemi
