BSP52T1 - onsemi
Small Signal Bipolar Transistor, 1A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon, TO-261AA
Technical Details
| Case/Package | SOT-223-4 |
| China RoHS | Non-Compliant |
| Collector Base Voltage (VCBO) | 90V |
| Collector Emitter Breakdown Voltage | 80V |
| Collector Emitter Voltage (VCEO) | 80V |
| Continuous Collector Current | 1A |
| Country of Origin | Malaysia |
| Current Rating | 1A |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Emitter Base Voltage (VEBO) | 5V |
| hFE Min | 2000 |
| Introduction Date | 1993-12-01 |
| Lead Free | Contains Lead |
| Lifecycle Status | Obsolete |
| Manufacturer Lifecycle Status | OBSOLETE |
| Max Breakdown Voltage | 80V |
| Max Collector Current | 1A |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 800mW |
| Min Operating Temperature | -65°C |
| Number of Elements | 1 |
| Number of Pins | 4 |
| Number of Terminals | 4 |
| Packaging | Tape and Reel |
| Polarity | NPN |
| Power Dissipation | 800mW |
| REACH SVHC | No |
| RoHS | Compliant |
| Voltage Rating (DC) | 80V |
Compliance
RoHS : Unconfirmed
REACH SVHC : No

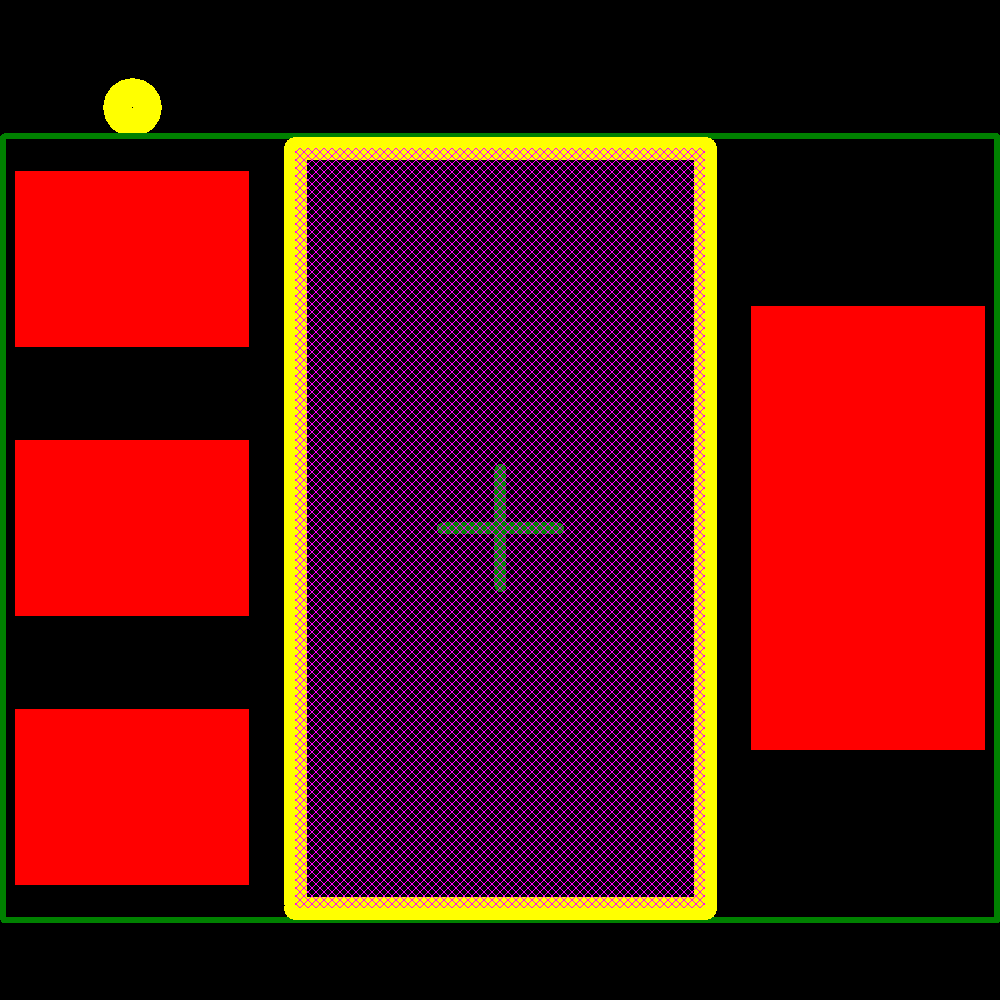

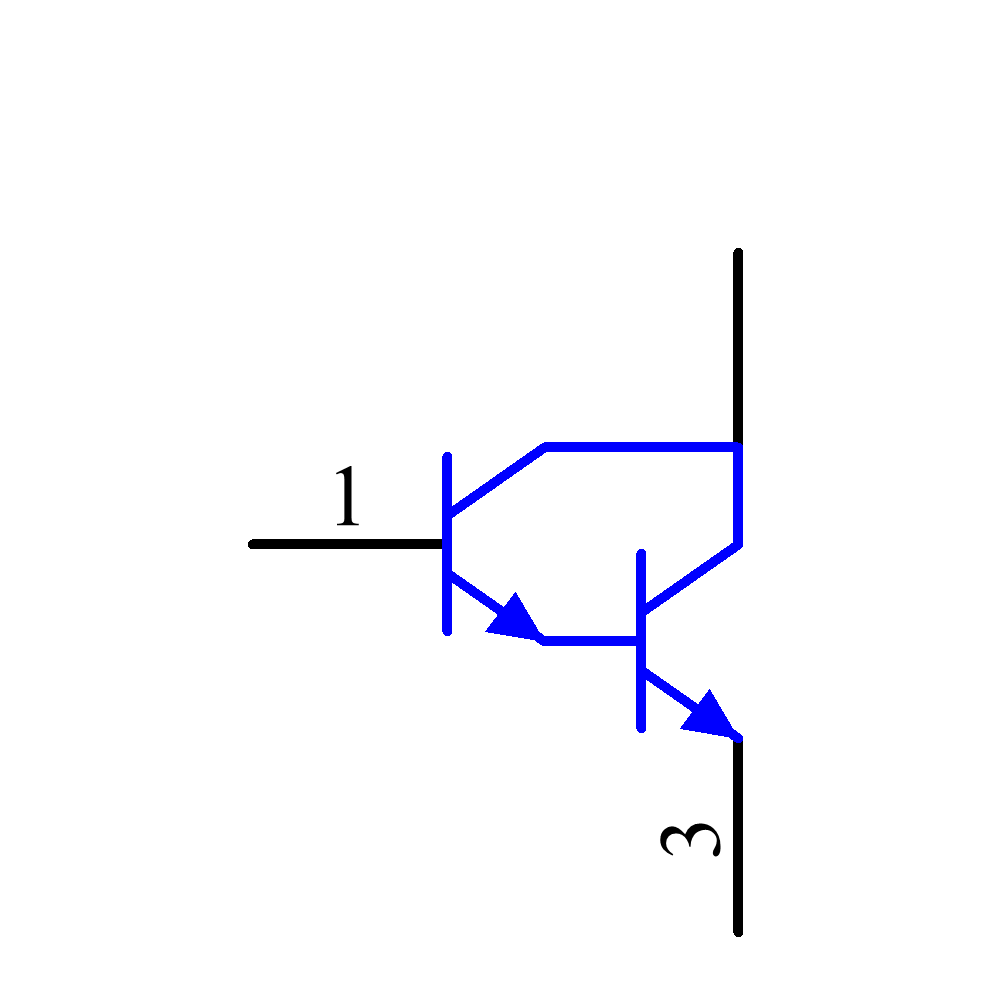

Images
