D45C12 - onsemi
Tube Through Hole PNP Single Bipolar (BJT) Transistor 40 @ 200mA 1V 4A 30W 40MHz
Technical Details

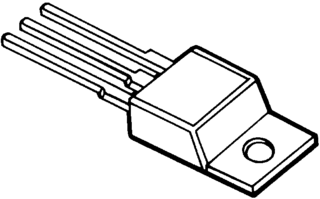

| Case/Package | TO-220-3 |
| China RoHS | Non-Compliant |
| Collector Base Voltage (VCBO) | 5V |
| Collector Emitter Saturation Voltage | 135mV |
| Collector Emitter Voltage (VCEO) | 80V |
| Country of Origin | Philippines |
| Current Rating | -4A |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Emitter Base Voltage (VEBO) | 5V |
| Gain Bandwidth Product | 40MHz |
| hFE Min | 20 |
| Introduction Date | 1999-10-28 |
| Lead Free | Contains Lead |
| Lifecycle Status | Obsolete |
| Manufacturer Lifecycle Status | OBSOLETE |
| Max Collector Current | 4A |
| Max Operating Temperature | 140°C |
| Max Power Dissipation | 30W |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Elements | 1 |
| Number of Pins | 3 |
| Number of Terminals | 3 |
| Polarity | PNP |
| Power Dissipation | 30W |
| REACH SVHC | No |
| RoHS | Compliant |
| Transition Frequency | 40MHz |
| Voltage Rating (DC) | -80V |
Compliance
RoHS : Unconfirmed
REACH SVHC : No
Images
Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| onsemi | Obsolete | ||
| Solid State Manufacturing | Obsolete | ||
| Solid State Manufacturing | Obsolete | ||
| STMicroelectronics | Obsolete | ||
| STMicroelectronics | Obsolete | ||
| STMicroelectronics | Production | ||
| onsemi | Obsolete | ||
| onsemi | Obsolete | ||
| STMicroelectronics | Obsolete | ||
| NTE Electronics | Obsolete |
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Rochester Electronics |
US: 4250
|
$ | 0.3039 | 0.2522 | 0.2249 | |||||
| Verical |
US: 4250
|
$ | 0.2811 | |||||||
