HUF75344G3 - onsemi

N-Channel UltraFET Power MOSFET 55V, 75A, 8mΩ

Technical Details

Case/Package	TO-247-3
China RoHS	Non-Compliant
Continuous Drain Current (ID)	75A
Current Rating	75A
Drain to Source Breakdown Voltage	55V
Drain to Source Resistance	8mΩ
Drain to Source Voltage (Vdss)	55V
Export Control Classification Number (ECCN) Code	EAR99
Element Configuration	Single
Fall Time	57ns
Gate to Source Voltage (Vgs)	20V
Height	24.75mm
Harmonized Tariff Schedule (HTS) Code	8541.29.00.95
Input Capacitance	3.2nF
Introduction Date	2000-01-20
Lead Free	Lead Free
Length	15.87mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Junction Temperature (Tj)	15°C
Max Operating Temperature	175°C
Max Power Dissipation	285W
Min Breakdown Voltage	55V
Min Operating Temperature	-55°C
Mount	Through Hole
Nominal Vgs	4V
Number of Channels	1
Number of Elements	1
Number of Pins	3
Number of Terminals	3
Power Dissipation	285W
Radiation Hardening	No
Rds On Max	8mΩ
REACH SVHC	No
Resistance	8MΩ
Rise Time	125ns
RoHS	Compliant
Schedule B	8541290080, 8541290080\|8541290080\|8541290080\|8541290080\|8541290080
Threshold Voltage	4V
Turn-Off Delay Time	46ns
Turn-On Delay Time	13ns
Voltage Rating (DC)	55V
Weight	6.39g
Width	4.82mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : No

Images

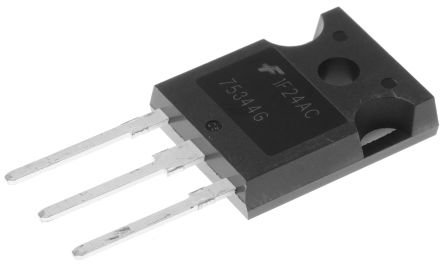

onsemi HUF75344G3 | RS

RS

Datasheets

Lifecycle Status Indicator

Production

Symbol

Footprint

Alternatives (Possible Substitutes)

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator	Confidence
onsemi	HUF75343G3	Obsolete
onsemi	HUF75339G3	Obsolete
STMicroelectronics	STW80NE06-10	Obsolete
onsemi	HUF75345G3	Production
Siemens	BUZ346	Obsolete
Infineon	IRFP054NPBF	NRND
