KST5551MTF - onsemi
KST Series NPN 350 mW 160 V 600 mA Surface Mount Epitaxial Transistor - SOT-23
Technical Details
| Case/Package | SOT-23 |
| China RoHS | Compliant |
| Collector Base Voltage (VCBO) | 180V |
| Collector Emitter Breakdown Voltage | 160V |
| Collector Emitter Saturation Voltage | 150mV |
| Collector Emitter Voltage (VCEO) | 160V |
| Contact Plating | Tin |
| Current Rating | 600mA |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Emitter Base Voltage (VEBO) | 6V |
| Frequency | 300MHz |
| Gain Bandwidth Product | 300MHz |
| Height | 1.2mm |
| hFE Min | 30 |
| Introduction Date | 1999-01-01 |
| Lead Free | Lead Free |
| Length | 2.9mm |
| Lifecycle Status | Obsolete |
| Manufacturer Lifecycle Status | OBSOLETE |
| Max Breakdown Voltage | 160V |
| Max Collector Current | 600mA |
| Max Frequency | 300MHz |
| Max Junction Temperature (Tj) | 150°C |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 625mW |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of Pins | 3 |
| Number of Terminals | 3 |
| Packaging | Tape & Reel |
| Polarity | NPN |
| Power Dissipation | 350mW |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Transition Frequency | 100MHz |
| Voltage Rating (DC) | 160V |
| Weight | 30mg |
| Width | 1.3mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

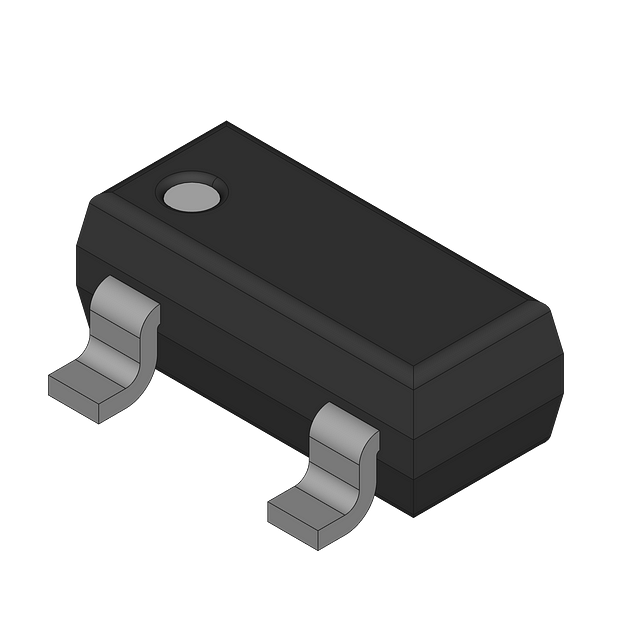

Images
Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| onsemi | Production | ||
| onsemi | Production | ||
| Panjit | Production | ||
| onsemi | Obsolete | ||
| onsemi | Production | ||
| Diodes Inc. | Production | ||
| onsemi | Production | ||
| Diotec | Production | ||
| Diodes Inc. | Obsolete | ||
| Central Semiconductor | Production |
