MJF3055 - onsemi
Tube Through Hole NPN Single Bipolar (BJT) Transistor 20 @ 4A 4V 1muA 2W 2MHz
Technical Details
| Case/Package | TO-220-3 |
| China RoHS | Non-Compliant |
| Collector Base Voltage (VCBO) | 90V |
| Collector Emitter Breakdown Voltage | 90V |
| Collector Emitter Saturation Voltage | 1V |
| Collector Emitter Voltage (VCEO) | 90V |
| Country of Origin | Philippines |
| Current Rating | 10A |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Emitter Base Voltage (VEBO) | 5V |
| Gain Bandwidth Product | 2MHz |
| hFE Min | 5 |
| Harmonized Tariff Schedule (HTS) Code | 8541.29.00.95 |
| Introduction Date | 1991-06-01 |
| Lead Free | Contains Lead |
| Lifecycle Status | Obsolete |
| Manufacturer Lifecycle Status | OBSOLETE |
| Max Collector Current | 10A |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 30W |
| Min Operating Temperature | -55°C |
| Number of Elements | 1 |
| Number of Pins | 3 |
| Number of Terminals | 3 |
| Polarity | NPN |
| Power Dissipation | 2W |
| REACH SVHC | No |
| RoHS | Compliant |
| Transition Frequency | 2MHz |
| Voltage Rating (DC) | 60V |
Compliance
RoHS : Unconfirmed
REACH SVHC : No

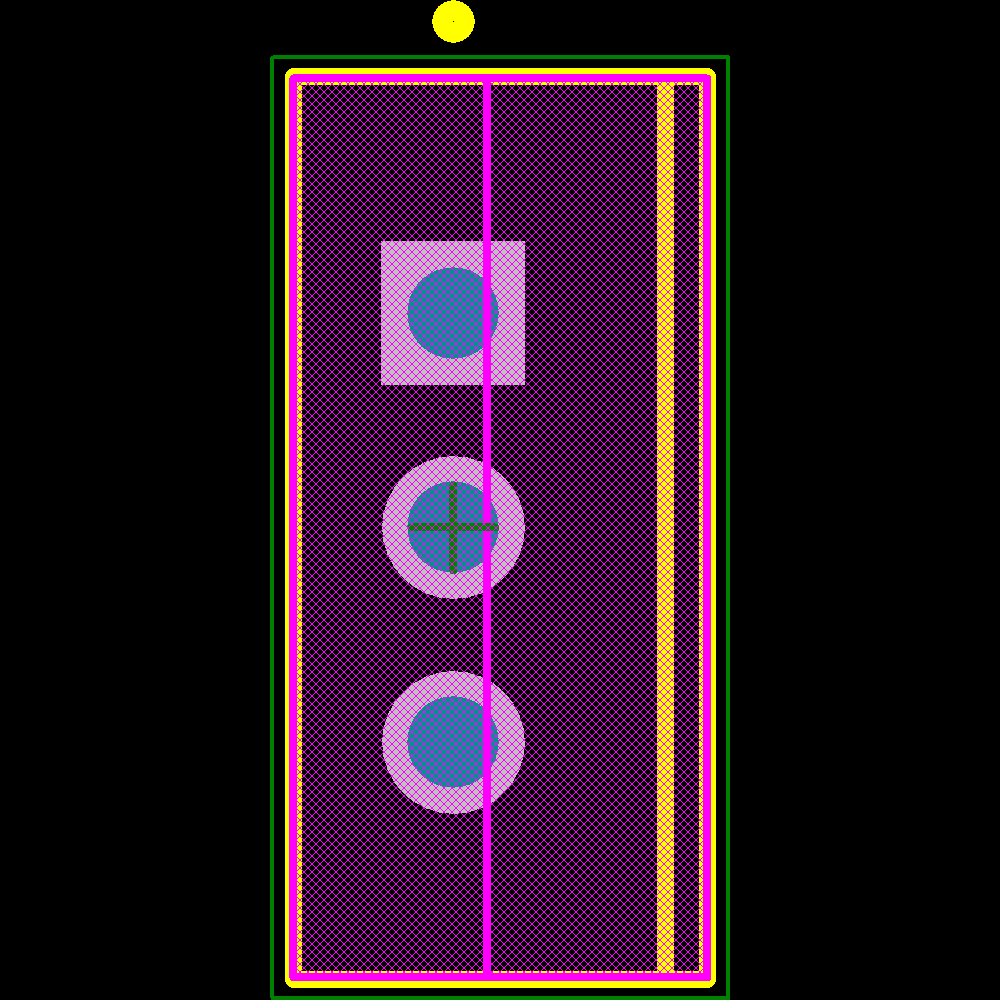

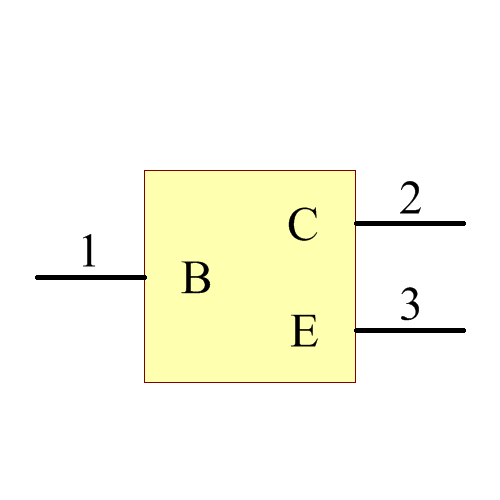

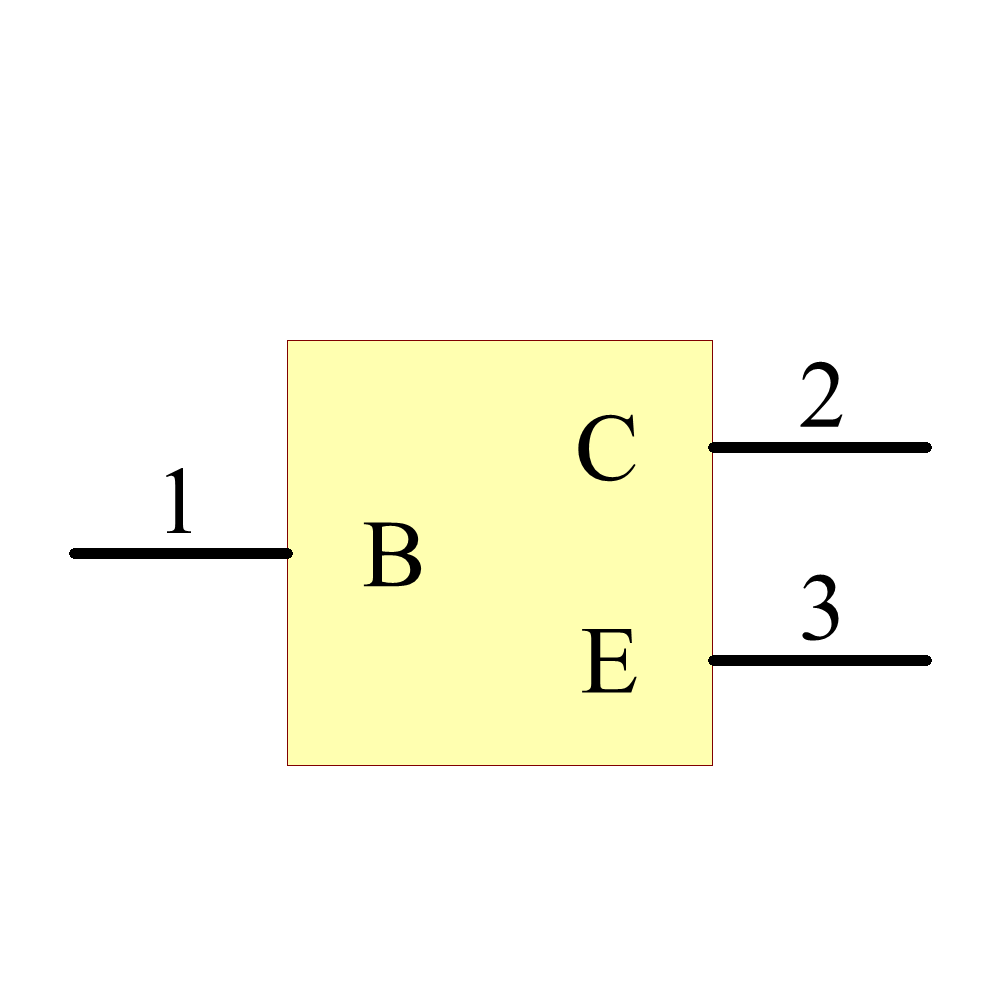

Images
Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| onsemi | Production | ||
| Fairchild Semiconductor | Obsolete | ||
| NXP Semiconductors | Obsolete | ||
| onsemi | Obsolete | ||
| onsemi | Obsolete | ||
| Sanyo | Obsolete | ||
| onsemi | Production | ||
| Toshiba | Obsolete | ||
| onsemi | Production | ||
| onsemi | Obsolete |
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Rochester Electronics |
US: 983
|
$ | 0.3831 | 0.318 | 0.2835 | |||||
