Discrete Semiconductors > Transistors > BJTs

MJF44H11G - onsemi

Transistor, Bipolar, Si, NPN, Power, Vceo 80VDC, IC 10A, Pd 36W, TO-220, Hfe 40, Vceo 80V

Technical Details

Case/Package	TO-220-3
China RoHS	Non-Compliant
Collector Base Voltage (VCBO)	5V
Collector Emitter Breakdown Voltage	80V
Collector Emitter Saturation Voltage	1V
Collector Emitter Voltage (VCEO)	80V
Contact Plating	Tin
Current Rating	10A
Element Configuration	Single
Emitter Base Voltage (VEBO)	5V
Frequency	50MHz
Gain Bandwidth Product	50MHz
Height	16.129mm
hFE Min	40
Lead Free	Lead Free
Length	10.6172mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Collector Current	10A
Max Frequency	50MHz
Max Operating Temperature	150°C
Max Power Dissipation	35W
Min Operating Temperature	-55°C
Number of Elements	1
Number of Pins	3
Number of Terminals	3
Polarity	NPN
Power Dissipation	2W
Radiation Hardening	No
REACH SVHC	No
RoHS	Compliant
Schedule B	8541290080, 8541290080\|8541290080\|8541290080\|8541290080, 8541290080\|8541290080\|8541290080\|8541290080\|8541290080, 8541290080\|8541290080\|8541290080\|8541290080\|8541290080\|8541290080
Transition Frequency	50MHz
Voltage Rating (DC)	80V
Weight	4.535924g
Width	4.9022mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : No

Images

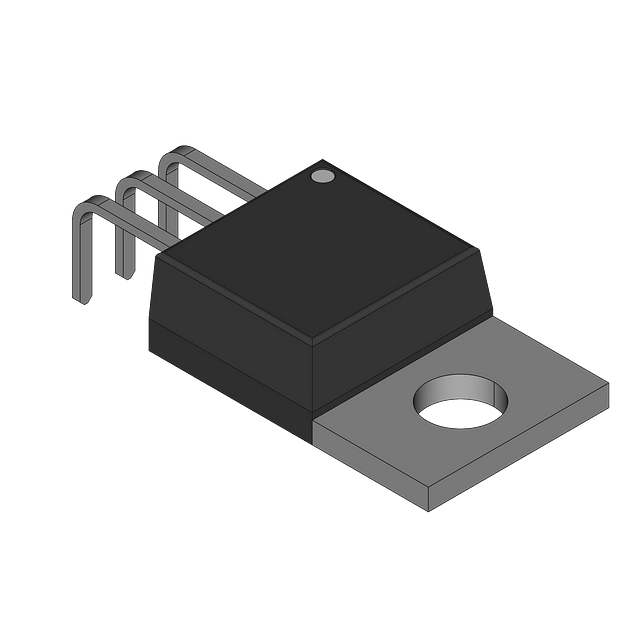

onsemi MJF44H11G | Rochester Electronics

Rochester Electronics

Datasheets

Lifecycle Status Indicator

Production

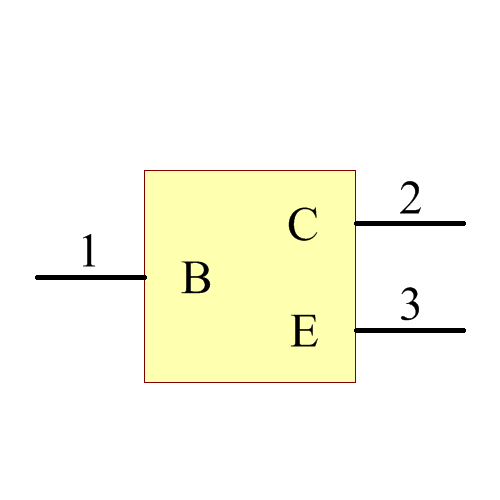

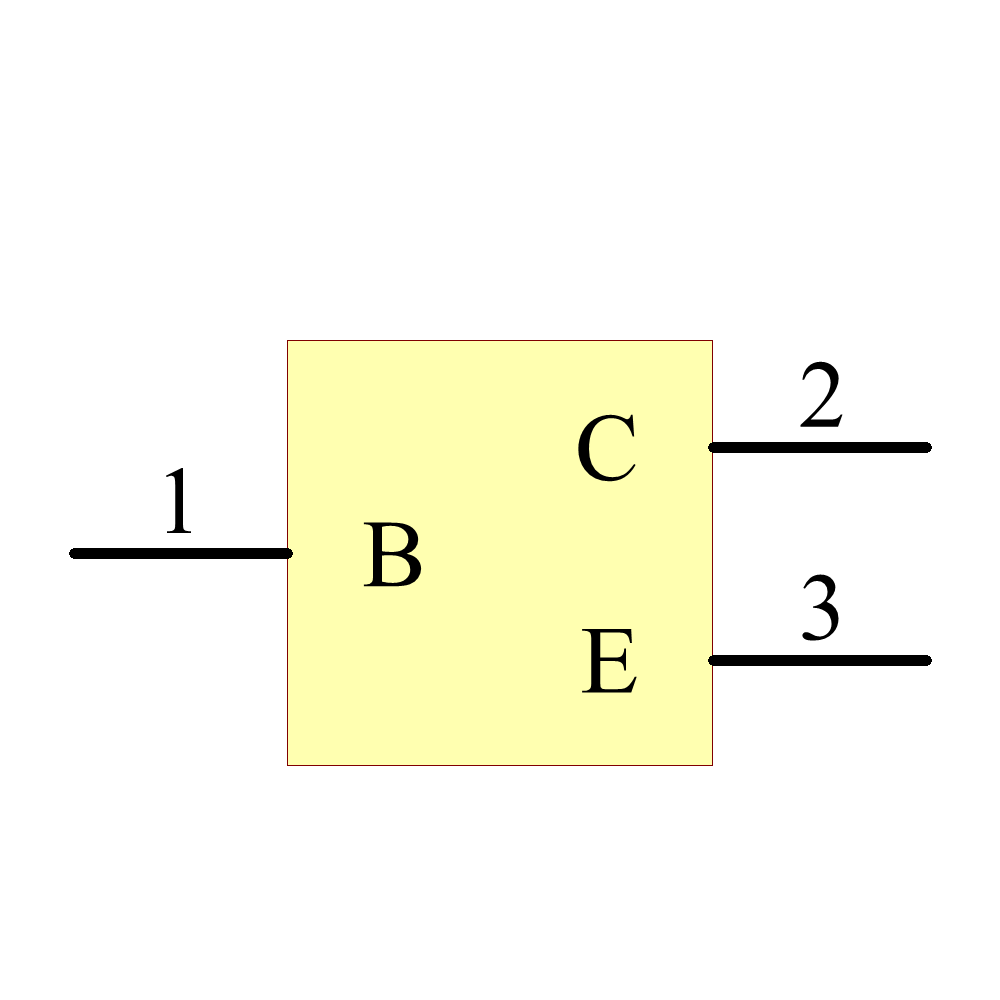

Symbol

MJF44H11G Symbol - onsemi

MJF44H11G Symbol - onsemi

MJF44H11G Symbol - onsemi

MJF44H11G Symbol - onsemi

‹ ›

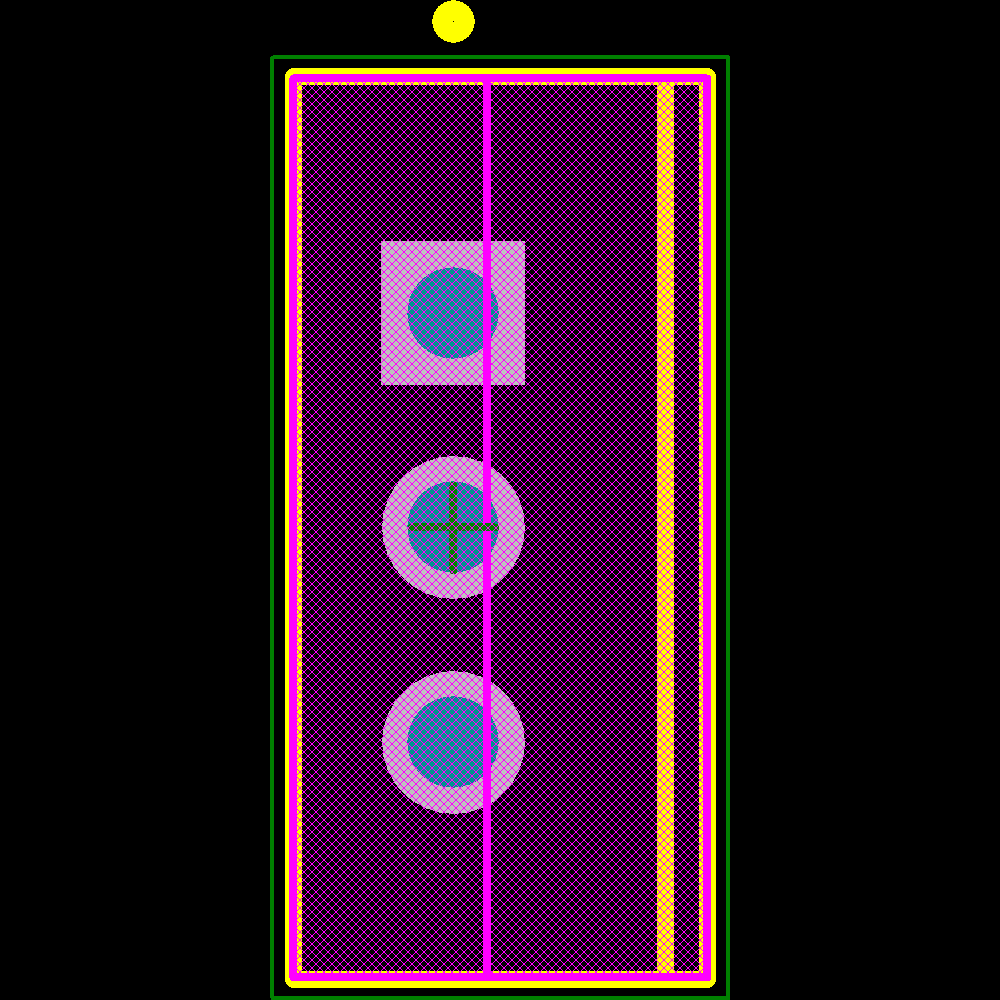

Footprint

MJF44H11G Footprint - onsemi

MJF44H11G Footprint - onsemi

MJF44H11G Footprint - onsemi

MJF44H11G Footprint - onsemi

‹ ›

Alternatives (Possible Substitutes)
