MMBT2222AWT1G - onsemi

Bipolar (BJT) Single Transistor, General Purpose, NPN, 40 V, 600 mA, 150 mW, SOT-323, Surface Mount

Technical Details

Case/Package	SC
China RoHS	Compliant
Collector Base Voltage (VCBO)	75V
Collector Emitter Breakdown Voltage	40V
Collector Emitter Saturation Voltage	1V
Collector Emitter Voltage (VCEO)	40V
Contact Plating	Tin
Country of Origin	Mainland China
Current Rating	28A
Export Control Classification Number (ECCN) Code	EAR99
Element Configuration	Single
Emitter Base Voltage (VEBO)	6V
Frequency	300MHz
Gain Bandwidth Product	300MHz
Height	1mm
hFE Min	40
Introduction Date	1997-06-23
Lead Free	Lead Free
Length	2.2mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Breakdown Voltage	40V
Max Collector Current	600mA
Max Frequency	100MHz
Max Operating Temperature	150°C
Max Power Dissipation	150mW
Min Operating Temperature	-55°C
Number of Elements	1
Number of Pins	3
Number of Terminals	3
Packaging	Tape and Reel
Polarity	NPN
Power Dissipation	150mW
Radiation Hardening	No
REACH SVHC	Yes
RoHS	Compliant
Schedule B	8541210080, 8541210080\|8541210080, 8541210080\|8541210080\|8541210080, 8541210080\|8541210080\|8541210080\|8541210080
Transition Frequency	300MHz
Voltage Rating (DC)	40V
Width	1.35mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : Yes

Images

onsemi MMBT2222AWT1G | Future Electronics

Future Electronics

Datasheets

Lifecycle Status Indicator

Production

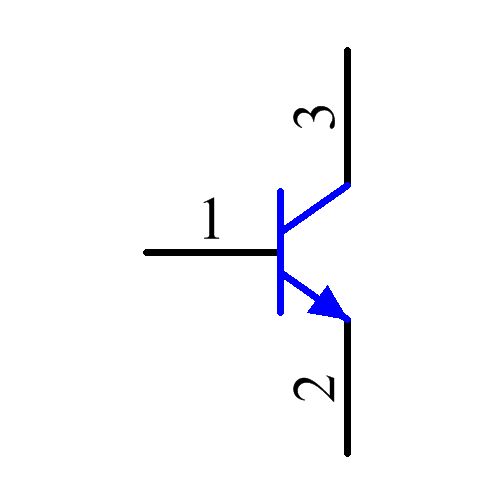

Symbol

MMBT2222AWT1G Symbol - onsemi

MMBT2222AWT1G Symbol - onsemi

MMBT2222AWT1G Symbol - onsemi

MMBT2222AWT1G Symbol - onsemi

‹ ›

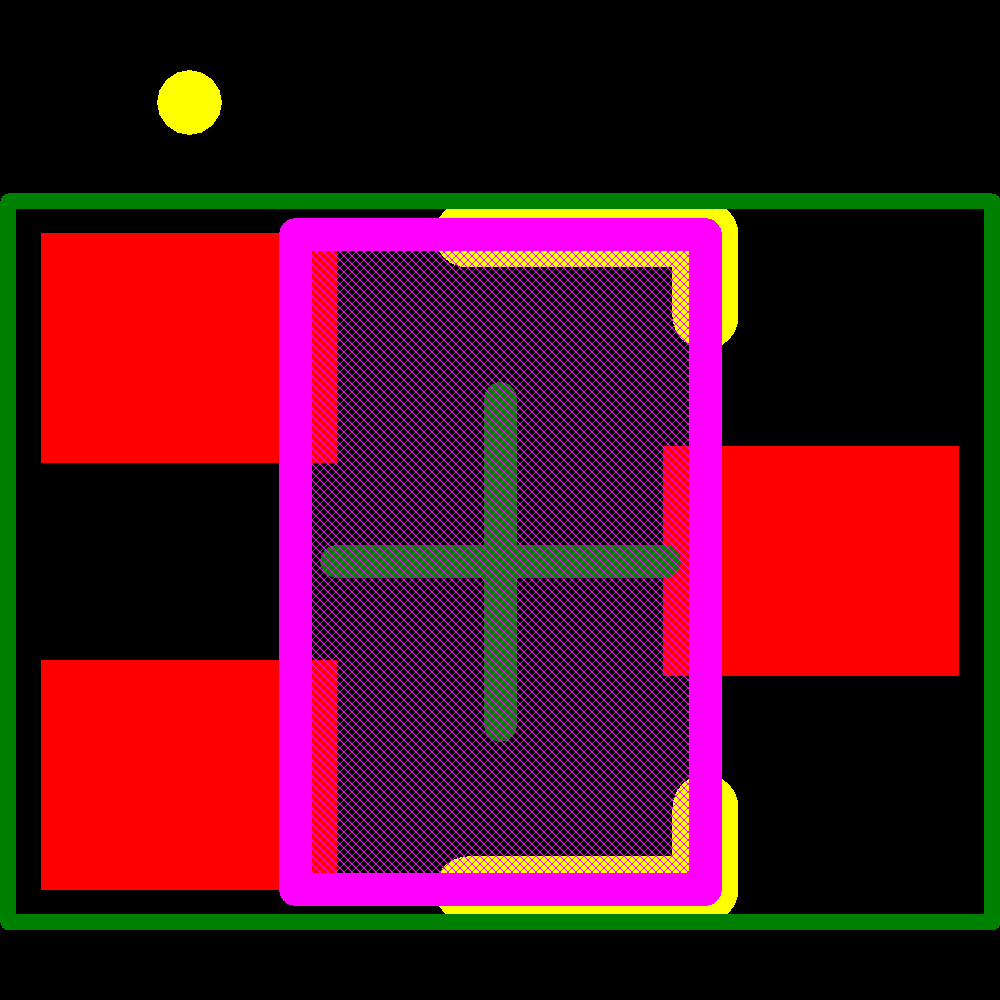

Footprint
