Discrete Semiconductors > Transistors > BJTs

NSVMUN5333DW1T1G - onsemi

Trans Digital BJT NPN/PNP 50V 100mA 385mW Automotive 6-Pin SC-88 T/R

Technical Details

Case/Package	SOT-363-6
China RoHS	Compliant
Collector Emitter Breakdown Voltage	50V
Collector Emitter Saturation Voltage	250mV
Collector Emitter Voltage (VCEO)	50V
Continuous Collector Current	100mA
Element Configuration	Dual
hFE Min	80
Lead Free	Lead Free
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Collector Current	100mA
Max Operating Temperature	150°C
Max Power Dissipation	385mW
Min Operating Temperature	-55°C
Number of Channels	2
Number of Elements	2
Number of Pins	6
Number of Terminals	6
Packaging	Tape and Reel
Polarity	NPN, PNP
Radiation Hardening	No
REACH SVHC	Yes
RoHS	Compliant
Schedule B	8541210080, 8541210080\|8541210080\|8541210080\|8541210080\|8541210080
Weight	6.010099mg

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : Yes

Images

onsemi NSVMUN5333DW1T1G | Rochester Electronics

Rochester Electronics

Datasheets

Rochester Electronics

Lifecycle Status Indicator

Production

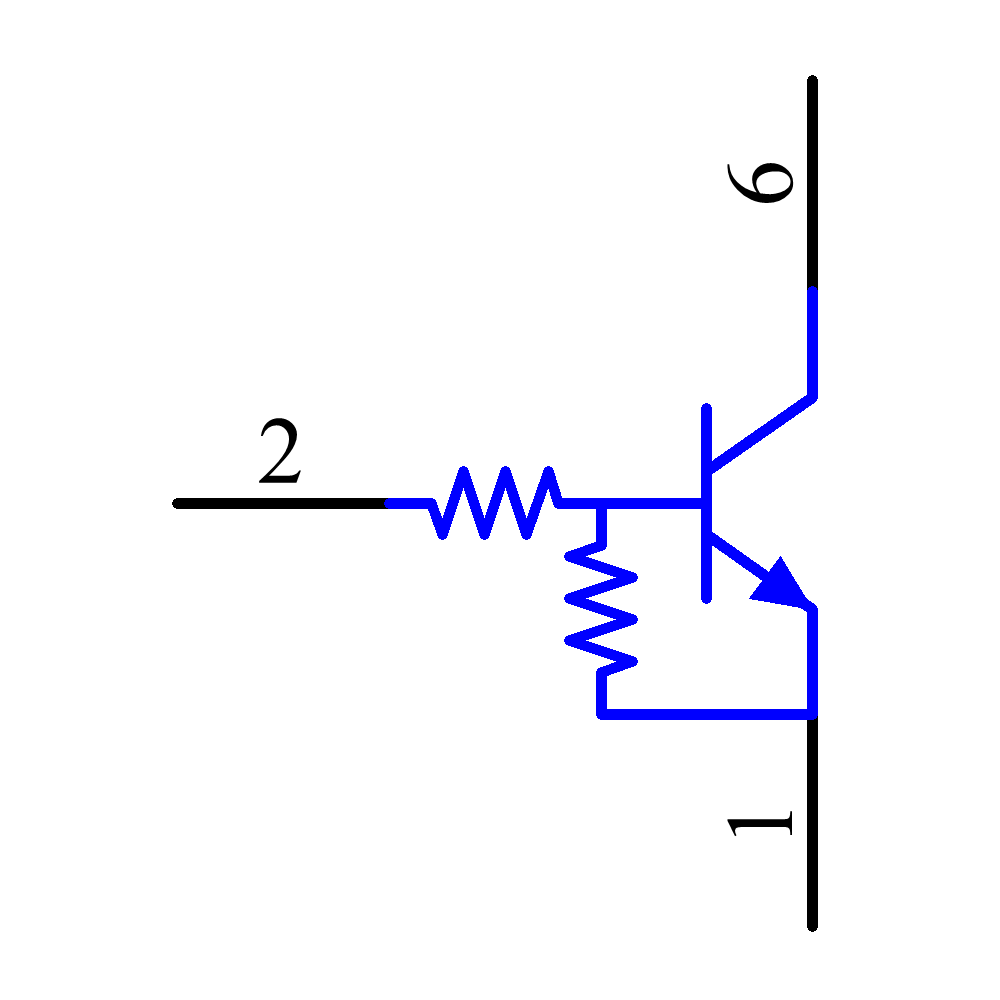

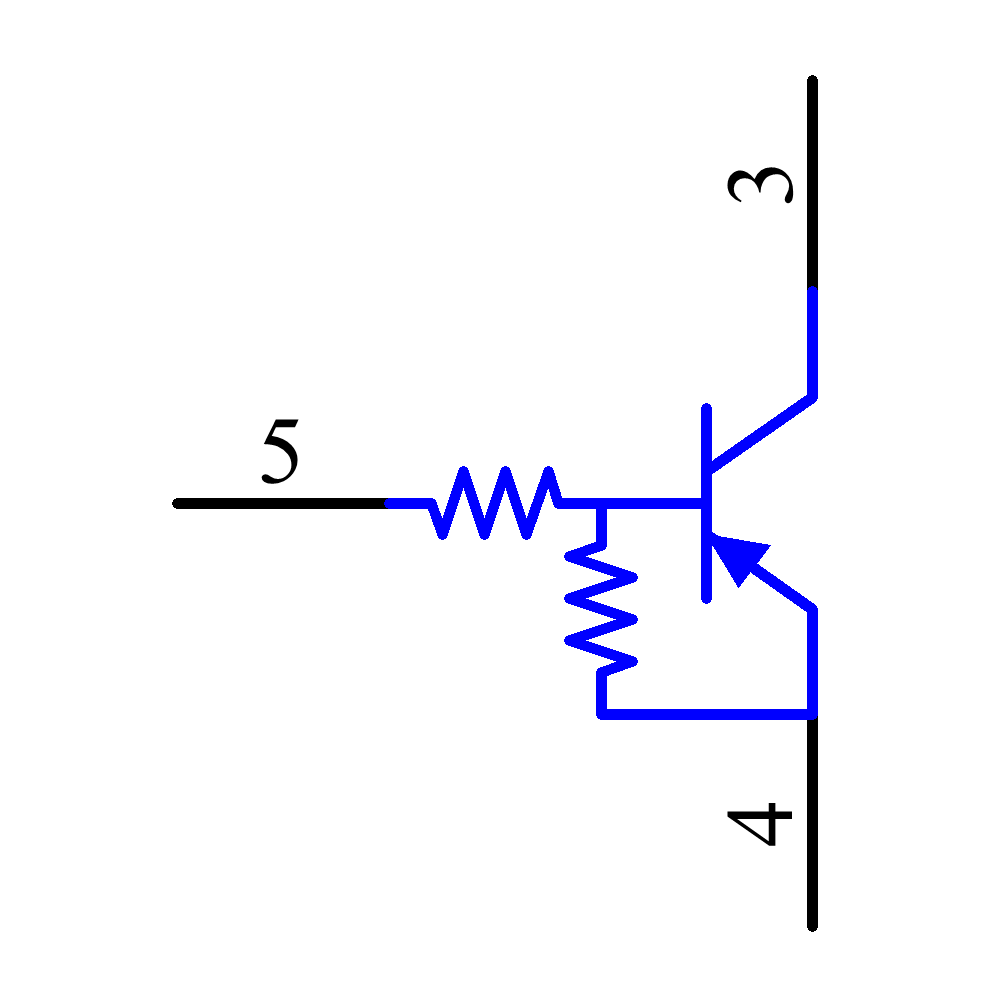

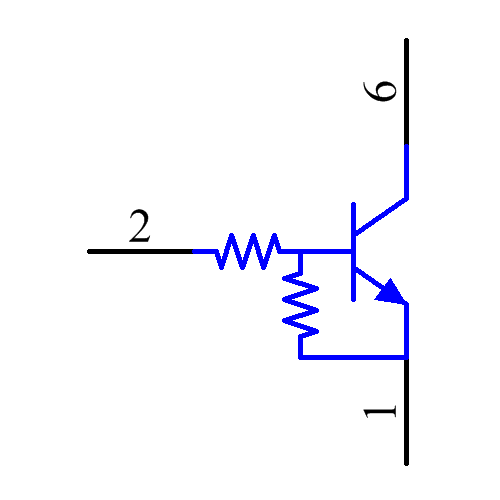

Symbol

NSVMUN5333DW1T1G Symbol - onsemi

NSVMUN5333DW1T1G Symbol - onsemi

NSVMUN5333DW1T1G Symbol - onsemi

NSVMUN5333DW1T1G Symbol - onsemi

NSVMUN5333DW1T1G Symbol - onsemi

NSVMUN5333DW1T1G Symbol - onsemi

NSVMUN5333DW1T1G Symbol - onsemi

NSVMUN5333DW1T1G Symbol - onsemi

‹ ›

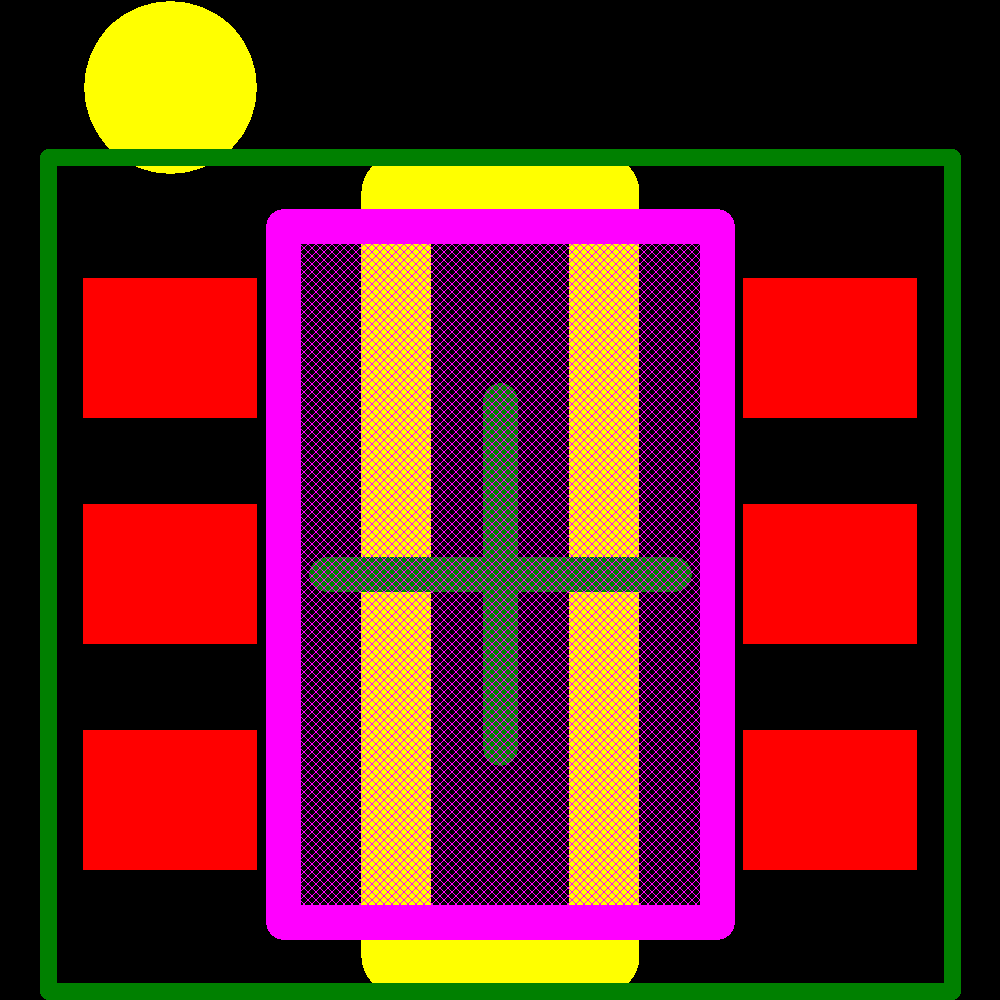

Footprint

NSVMUN5333DW1T1G Footprint - onsemi

NSVMUN5333DW1T1G Footprint - onsemi

NSVMUN5333DW1T1G Footprint - onsemi

NSVMUN5333DW1T1G Footprint - onsemi

‹ ›

Alternatives (Possible Substitutes)

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator	Confidence
Diodes Inc.	DCX114YUQ-7-F	NRND
onsemi	NSVMUN5332DW1T1G	Production
onsemi	SMUN5311DW1T1G	Production
onsemi	MUN5312DW1T1G	Production
Nexperia	PUMD3,135	Production
Nexperia	PUMD3,125	Production
Nexperia	PUMD13,135	Production
onsemi	MUN5335DW1T2	Obsolete
onsemi	MUN5313DW1T1	Obsolete
onsemi	SMUN5313DW1T1G	Production
