SBC856BLT3G - onsemi
on Semi SBC856BLT3G PNP Bipolar Transistor, 0.1 A, 65 V, 3-PIN SOT-23
Technical Details
| Case/Package | SOT-23-3 |
| China RoHS | Compliant |
| Collector Base Voltage (VCBO) | 80V |
| Collector Emitter Breakdown Voltage | 65V |
| Collector Emitter Saturation Voltage | -650mV |
| Collector Emitter Voltage (VCEO) | 65V |
| Continuous Collector Current | 100mA |
| Element Configuration | Single |
| Emitter Base Voltage (VEBO) | 5V |
| Frequency | 100MHz |
| Height | 1.11mm |
| hFE Min | 220 |
| Lead Free | Lead Free |
| Length | 3.04mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Collector Current | 100mA |
| Max Frequency | 100MHz |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 300mW |
| Min Operating Temperature | -55°C |
| Number of Elements | 1 |
| Number of Pins | 3 |
| Number of Terminals | 3 |
| Packaging | Tape and Reel |
| Polarity | PNP |
| Power Dissipation | 300mW |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Transition Frequency | 100MHz |
| Width | 2.64mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

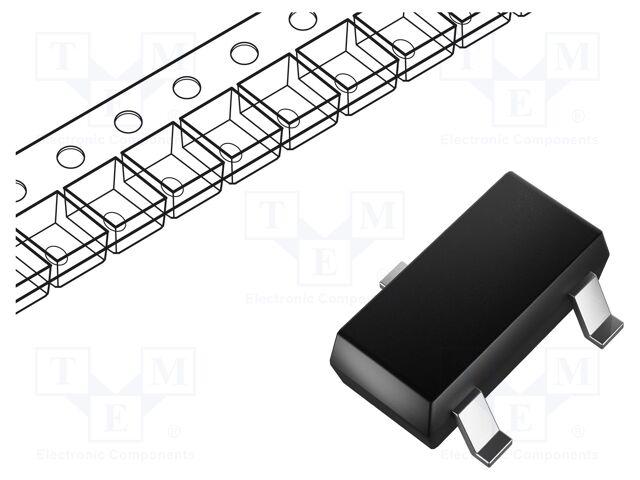

Images
TME
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| onsemi | Obsolete | ||
| onsemi | Production | ||
| Leshan Radio Co. | Unknown | ||
| Taiwan Semiconductor | Production | ||
| Taiwan Semiconductor | Production | ||
| onsemi | Production | ||
| onsemi | EOL | ||
| Taiwan Semiconductor | Production | ||
| onsemi | Unknown | ||
| onsemi | Obsolete |
