TIP29G - onsemi
Power Bipolar Transistor, 1A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin
Technical Details
| Case/Package | TO-220-3 |
| China RoHS | Non-Compliant |
| Collector Base Voltage (VCBO) | 40V |
| Collector Emitter Saturation Voltage | 700mV |
| Collector Emitter Voltage (VCEO) | 40V |
| Country of Origin | Philippines |
| Current Rating | 1A |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Emitter Base Voltage (VEBO) | 5V |
| Gain Bandwidth Product | 3MHz |
| hFE Min | 15 |
| Harmonized Tariff Schedule (HTS) Code | 8541.29.00.95 |
| Introduction Date | 1999-01-01 |
| Lead Free | Lead Free |
| Lifecycle Status | Obsolete |
| Manufacturer Lifecycle Status | OBSOLETE |
| Max Collector Current | 1A |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 30W |
| Min Operating Temperature | -65°C |
| Number of Elements | 1 |
| Number of Pins | 3 |
| Number of Terminals | 3 |
| Polarity | NPN |
| Power Dissipation | 2W |
| REACH SVHC | No |
| RoHS | Compliant |
| Transition Frequency | 3MHz |
| Voltage Rating (DC) | 40V |
Compliance
RoHS : Unconfirmed
REACH SVHC : No

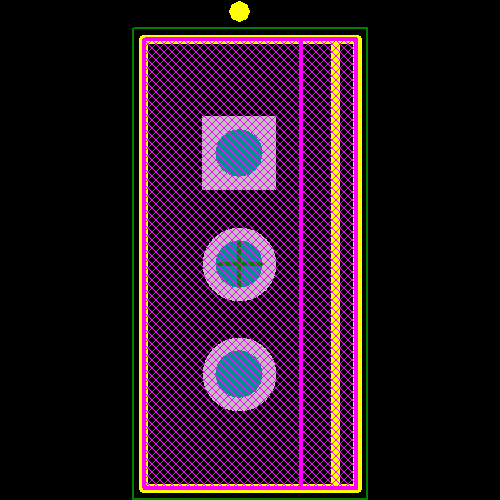

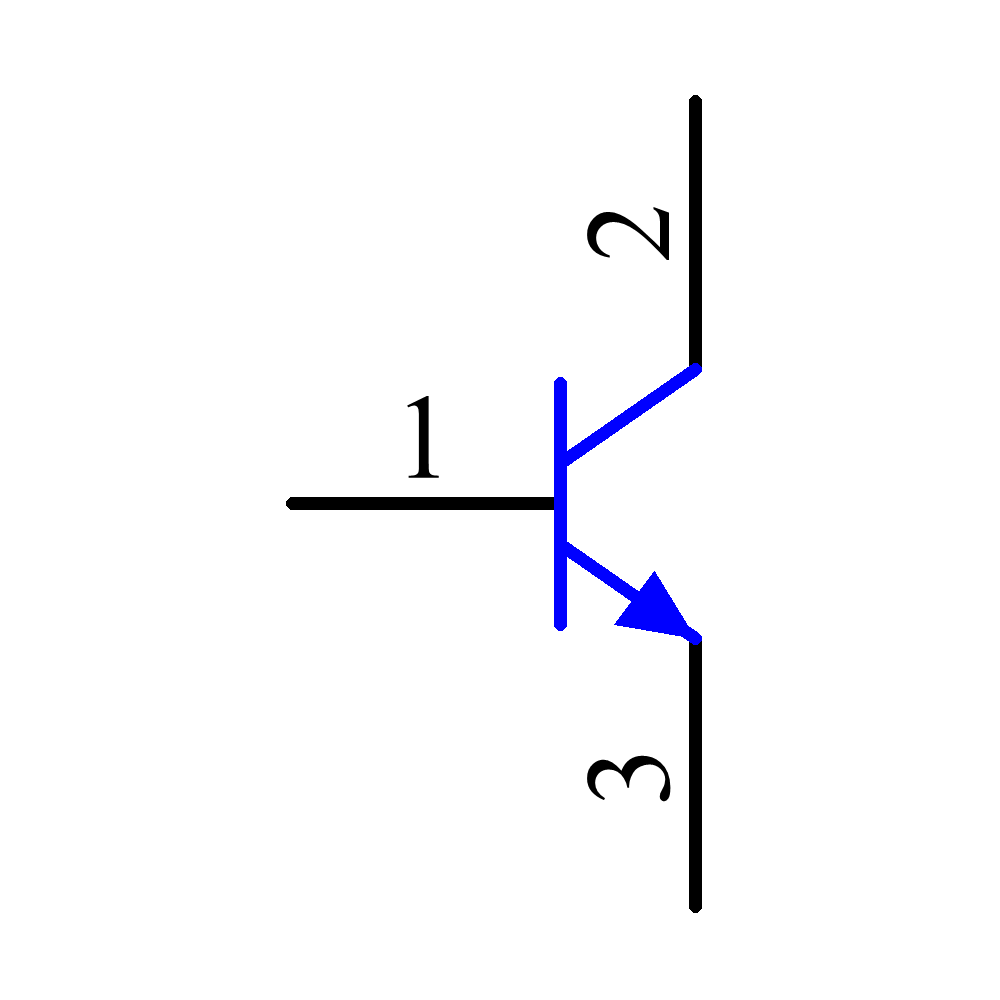

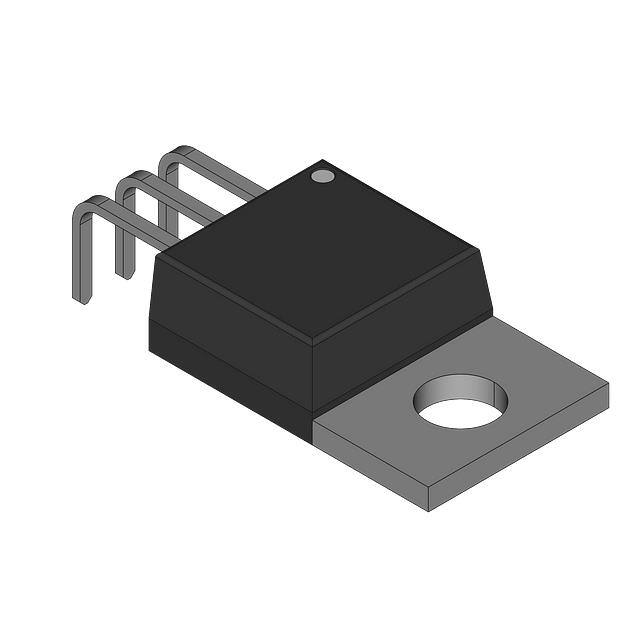

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Central Semiconductor | Obsolete | ||
| Texas Instruments | Unknown | ||
| onsemi | Production | ||
| Central Semiconductor | Obsolete | ||
| onsemi | Obsolete | ||
| onsemi | Production | ||
| STMicroelectronics | Production | ||
| STMicroelectronics | Production | ||
| STMicroelectronics | Unknown | ||
| Central Semiconductor | Obsolete |
