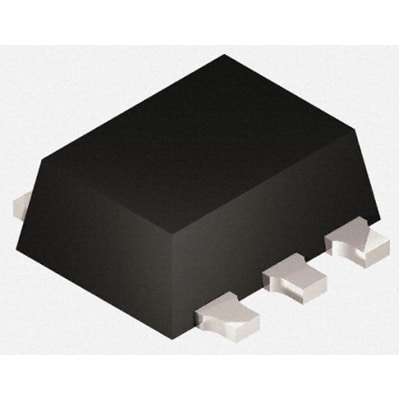

DMG964H10R - Panasonic
Small Signal Bipolar Transistor, 0.1A I(C), 50V V(BR)CEO, 2-Element, NPN and PNP, Silicon
Technical Details
| Collector Emitter Breakdown Voltage | 50V |
| Collector Emitter Voltage (VCEO) | 50V |
| Continuous Collector Current | -100mA |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Dual |
| Height | 500µm |
| hFE Min | 80 |
| Introduction Date | 2012-02-02 |
| Length | 1.6mm |
| Lifecycle Status | Obsolete |
| Max Breakdown Voltage | 50V |
| Max Collector Current | 100mA |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 125mW |
| Mount | Surface Mount |
| Number of Elements | 2 |
| Number of Pins | 6 |
| Number of Terminals | 6 |
| Packaging | Digi-Reel® |
| Polarity | NPN, PNP |
| RoHS | Compliant |
| Width | 1.2mm |
Compliance
RoHS : Unconfirmed
Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Nexperia | Production | ||
| Nexperia | Production | ||
| Panasonic | Obsolete | ||
| Panasonic | Obsolete | ||
| Toshiba | Production | ||
| Toshiba | Production | ||
| Toshiba | Production | ||
| Toshiba | Production | ||
| Toshiba | Production | ||
| Toshiba | Production |
