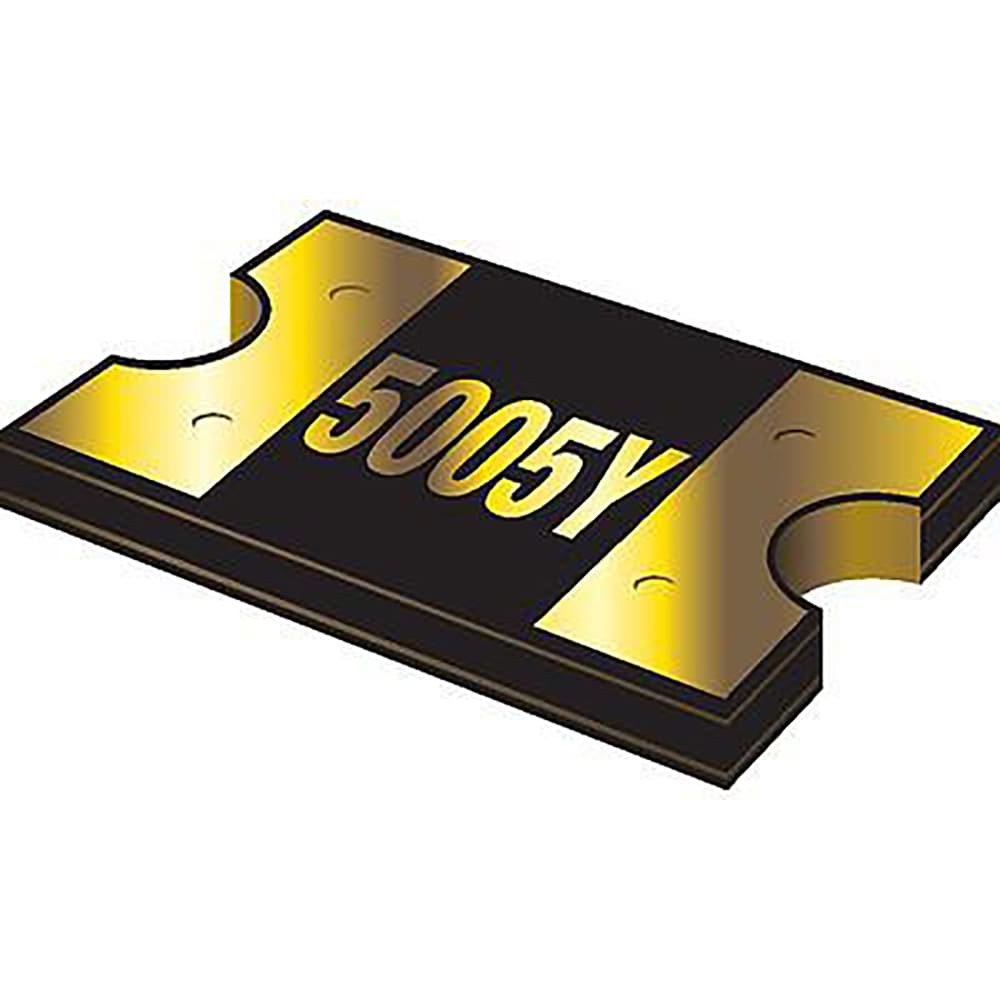

PFMF.050.2 - Schurter
PTC Resettable Fuse 0.5A(hold) 1A(trip) 15VDC 100A 0.8W 0.15s 0.15Ohm SMD Solder Pad 1812 T/R
Technical Details
| Approvals | CSA, UL |
| Case/Package | 1812 |
| Case Code (Imperial) | 1812 |
| Case Code (Metric) | 4532 |
| Contact Plating | Gold |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height | 850µm |
| Hold Current | 500mA |
| Harmonized Tariff Schedule (HTS) Code | 8533.40.80.70 |
| Introduction Date | 2005-02-17 |
| Length | 4.73mm |
| Lifecycle Status | Production |
| Max Current Rating | 100A |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (DC) | 15V |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Terminals | 2 |
| Operating Supply Voltage | 15V |
| Power Dissipation | 800mW |
| REACH SVHC | Yes |
| Resistance | 150mΩ |
| RoHS | Compliant |
| Terminal Material | Electroless Nickel |
| Termination | SMD/SMT |
| Time to Trip | 150ms |
| Trip Current | 1A |
| Voltage Rating | 15V |
| Voltage Rating (DC) | 15V |
| Weight | 18.001947mg |
| Width | 3.41mm |
| Working Voltage | 15V |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes
