RCLAMP0504FATCT - Semtech
RAILCLAMP 150 W 15 kV 6 V Surface Mount TVS Diode Array - SC-70-6
Technical Details
| Breakdown Voltage | 6V |
| Case/Package | SC |
| China RoHS | Compliant |
| Clamping Voltage | 25V |
| Country of Origin | Mainland China |
| Depth | 1.25mm |
| Direction | Unidirectional |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Introduction Date | 2010-04-15 |
| Leakage Current | 3µA |
| Length | 2mm |
| Lifecycle Status | Production |
| Max Operating Temperature | 125°C |
| Max Power Dissipation | 150W |
| Min Breakdown Voltage | 6V |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Bidirectional Channels | 4 |
| Number of Channels | 4 |
| Number of Elements | 1 |
| Number of Pins | 6 |
| Number of Terminals | 6 |
| Packaging | Cut Tape |
| Peak Pulse Current | 6A |
| Peak Pulse Power | 150W |
| Polarity | Unidirectional |
| Power Line Protection | Yes |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Reverse Standoff Voltage | 5V |
| RoHS | Compliant |
| Schedule B | 8536300000, 8542390000 |
| Working Voltage | 5V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes
Images

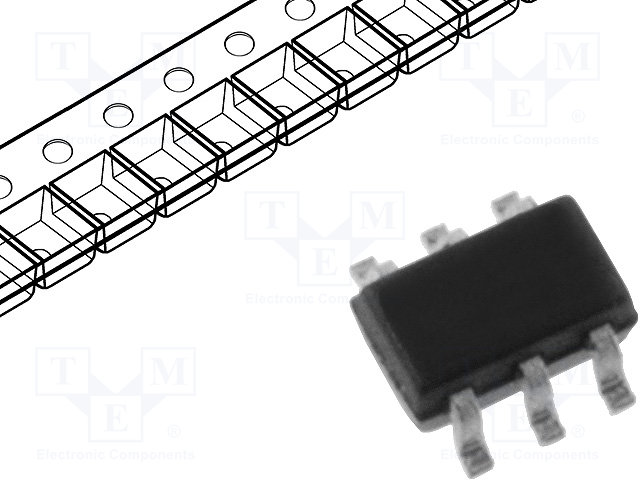

TME
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Semtech | Production | ||
| Semtech | Obsolete | ||
| Semtech | Production | ||
| Good-Ark | Unknown | ||
| Panjit | Production | ||
| Taiwan Semiconductor | Unknown | ||
| Sangdest Microelectronics | Production | ||
| Leshan Radio Co. | Unknown | ||
| Taiwan Semiconductor | Unknown | ||
| Texas Instruments | Production |
