SD05.TCT - Semtech
SD Series 14.5 V 350 W SMT Single Line TVS Diode for ESD Protection - SOD-323
Technical Details
| Breakdown Voltage | 6V |
| China RoHS | Compliant |
| Clamping Voltage | 14.5V |
| Composition | Zener |
| Country of Origin | Mainland China |
| Current | 24A |
| Depth | 1.4mm |
| Direction | Unidirectional |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Introduction Date | 2000-02-23 |
| Lead Free | Lead Free |
| Leakage Current | 10µA |
| Length | 1.8mm |
| Lifecycle Status | Production |
| Max Breakdown Voltage | 6V |
| Max Operating Temperature | 125°C |
| Max Power Dissipation | 350W |
| Min Breakdown Voltage | 6V |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Number of Unidirectional Channels | 1 |
| Operating Supply Voltage | 5V |
| Packaging | Cut Tape |
| Peak Pulse Current | 24A |
| Peak Pulse Power | 350W |
| Polarity | Unidirectional |
| Power Dissipation | 350W |
| Power Line Protection | No |
| Power Rating | 350W |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Reverse Breakdown Voltage | 6V |
| Reverse Standoff Voltage | 5V |
| RoHS | Compliant |
| Schedule B | 8542390000 |
| Test Current | 1mA |
| Voltage | 5V |
| Voltage Rating (DC) | 5V |
| Width | 1.4mm |
| Working Voltage | 5V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

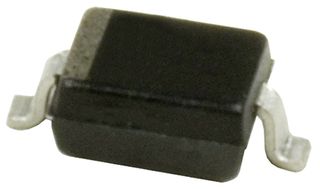

Images
