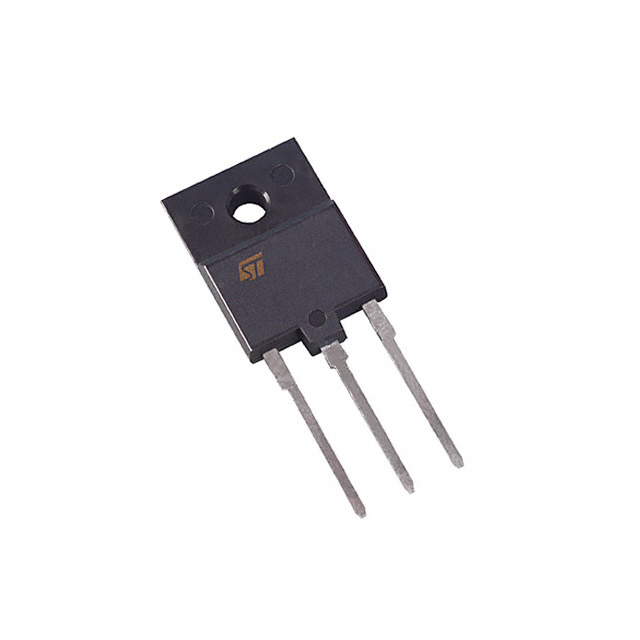

BU508AFI - STMicroelectronics
Power Bipolar Transistor, 8A I(C), 700V V(BR)CEO, 1-Element, NPN, Silicon, TO-218, Plastic/Epoxy, 3 Pin
Technical Details
| Case/Package | SOT-93 |
| China RoHS | Non-Compliant |
| Collector Emitter Breakdown Voltage | 700V |
| Collector Emitter Saturation Voltage | 1V |
| Collector Emitter Voltage (VCEO) | 700V |
| Current Rating | 8A |
| Element Configuration | Single |
| Emitter Base Voltage (VEBO) | 10V |
| Frequency | 7MHz |
| Gain Bandwidth Product | 7MHz |
| hFE Min | 10 |
| Lead Free | Lead Free |
| Lifecycle Status | Obsolete |
| Max Collector Current | 8A |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 125W |
| Min Operating Temperature | -65°C |
| Mount | Through Hole |
| Number of Elements | 1 |
| Number of Pins | 218 |
| Number of Terminals | 3 |
| Polarity | NPN |
| Power Dissipation | 60W |
| REACH SVHC | No |
| RoHS | Compliant |
| Transition Frequency | 7MHz |
| Voltage Rating (DC) | 700V |
Compliance
RoHS : Unconfirmed
REACH SVHC : No
