D45H11 - STMicroelectronics
Bipolar (BJT) Single Transistor, PNP, 80 V, 10 A, 60 W, TO-220, Through Hole
Technical Details
| Case/Package | TO-220 |
| China RoHS | Non-Compliant |
| Collector Base Voltage (VCBO) | 80V |
| Collector Emitter Breakdown Voltage | 80V |
| Collector Emitter Saturation Voltage | 1V |
| Collector Emitter Voltage (VCEO) | 80V |
| Country of Origin | Mainland China |
| Current Rating | -10A |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Emitter Base Voltage (VEBO) | 5V |
| Height | 15.75mm |
| hFE Min | 40 |
| Harmonized Tariff Schedule (HTS) Code | 8541.29.00.75 |
| Introduction Date | 1980-01-04 |
| Length | 10.4mm |
| Lifecycle Status | Production |
| Max Collector Current | 10A |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 50W |
| Min Operating Temperature | -65°C |
| Mount | Through Hole |
| Number of Elements | 1 |
| Number of Pins | 3 |
| Number of Terminals | 3 |
| Polarity | PNP |
| Power Dissipation | 50W |
| Radiation Hardening | No |
| REACH SVHC | No |
| RoHS | Compliant |
| Schedule B | 8541290080 |
| Transition Frequency | 40MHz |
| Voltage Rating (DC) | -80V |
| Weight | 4.535924g |
| Width | 4.6mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

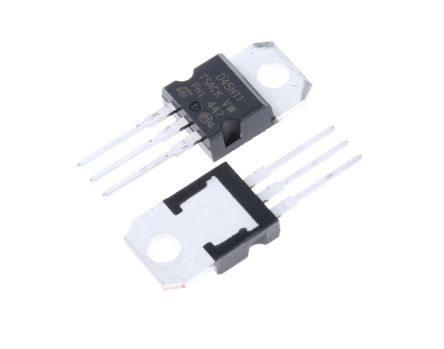

Images
RS
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| onsemi | Obsolete | ||
| onsemi | Production | ||
| Changjiang Electronics | Unknown | ||
| STMicroelectronics | Obsolete | ||
| Sanken | Obsolete | ||
| ROHM | Obsolete | ||
| ROHM | Obsolete | ||
| Harris | Obsolete | ||
| NTE Electronics | Obsolete | ||
| Sanyo | Obsolete |
