Discrete Semiconductors > Transistors > BJTs

MJE3055T - STMicroelectronics

Bipolar (BJT) Single Transistor, General Purpose, NPN, 60 V, 10 A, 75 W, TO-220, Through Hole

Technical Details

Case/Package	TO-220
China RoHS	Non-Compliant
Collector Base Voltage (VCBO)	70V
Collector Emitter Breakdown Voltage	60V
Collector Emitter Saturation Voltage	8V
Collector Emitter Voltage (VCEO)	60V
Contact Plating	Tin
Country of Origin	Mainland China
Current Rating	10A
Export Control Classification Number (ECCN) Code	EAR99
Element Configuration	Single
Emitter Base Voltage (VEBO)	5V
Frequency	2MHz
Gain Bandwidth Product	2MHz
Height	9.15mm
hFE Min	5
Harmonized Tariff Schedule (HTS) Code	8541.29.00.95
Introduction Date	1980-01-04
Lead Free	Lead Free
Length	10.4mm
Lifecycle Status	Production
Max Collector Current	10A
Max Frequency	2MHz
Max Operating Temperature	150°C
Max Power Dissipation	75W
Min Operating Temperature	-55°C
Mount	Through Hole
Number of Elements	1
Number of Pins	3
Number of Terminals	3
Polarity	NPN
Power Dissipation	75W
Radiation Hardening	No
REACH SVHC	No
RoHS	Compliant
Schedule B	8541290080
Transition Frequency	2MHz
Voltage Rating (DC)	60V
Weight	4.535924g
Width	4.6mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : No

Images

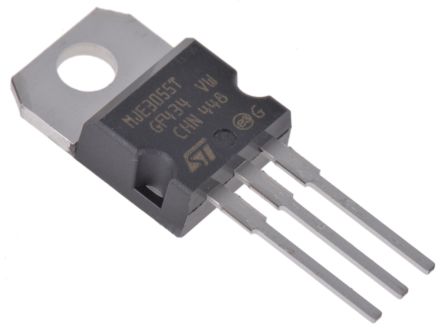

STMicroelectronics MJE3055T | RS

RS

Datasheets

Lifecycle Status Indicator

Production

Alternatives (Possible Substitutes)

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator	Confidence
onsemi	MJE3055TTU	Obsolete
MCC	MJE3055-BP	Obsolete
onsemi	MJE15030	Obsolete
onsemi	MJE15030G	Production
STMicroelectronics	BD910	Obsolete
STMicroelectronics	2N6491	Obsolete
Multicomp	MJE15030	Production
onsemi	MJE2955TTU	Production
Fairchild Semiconductor	MJE2955TTU_NL	Obsolete
MCC	MJE13005-BP	Obsolete

See more alternatives See less alternatives
