STD5N20LT4 - STMicroelectronics

MOSFET Transistor, N Channel, 2.5 A, 200 V, 650 mohm, 5 V, 2.5 V RoHS Compliant: Yes

Technical Details

Case/Package	DPAK
China RoHS	Non-Compliant
Continuous Drain Current (ID)	5A
Country of Origin	Mainland China
Current Rating	5A
Drain to Source Breakdown Voltage	200V
Drain to Source Resistance	700mΩ
Drain to Source Voltage (Vdss)	200V
Dual Supply Voltage	200V
Export Control Classification Number (ECCN) Code	EAR99
Element Configuration	Single
Fall Time	15.5ns
Gate to Source Voltage (Vgs)	20V
Height	2.63mm
Input Capacitance	242pF
Introduction Date	2004-09-20
Length	6.6mm
Lifecycle Status	Production
Max Junction Temperature (Tj)	150°C
Max Operating Temperature	150°C
Max Power Dissipation	33W
Min Breakdown Voltage	200V
Min Operating Temperature	-55°C
Mount	Surface Mount
Nominal Vgs	2.5V
Number of Channels	1
Number of Elements	1
Number of Pins	3
Number of Terminals	2
Packaging	Tape and Reel
Power Dissipation	33W
Radiation Hardening	No
Rds On Max	700mΩ
REACH SVHC	No
Resistance	700mΩ
Rise Time	21.5ns
RoHS	Compliant
Schedule B	8541290080, 8541290080\|8541290080\|8541290080\|8541290080\|8541290080
Termination	SMD/SMT
Threshold Voltage	2.5V
Turn-Off Delay Time	14ns
Turn-On Delay Time	11.5ns
Voltage Rating (DC)	200V
Width	6.2mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : No

Images

STMicroelectronics STD5N20LT4 | Future Electronics

Future Electronics

Datasheets

Lifecycle Status Indicator

Production

Symbol

STD5N20LT4 Symbol - STMicroelectronics

STD5N20LT4 Symbol - STMicroelectronics

STD5N20LT4 Symbol - STMicroelectronics

STD5N20LT4 Symbol - STMicroelectronics

‹ ›

Footprint

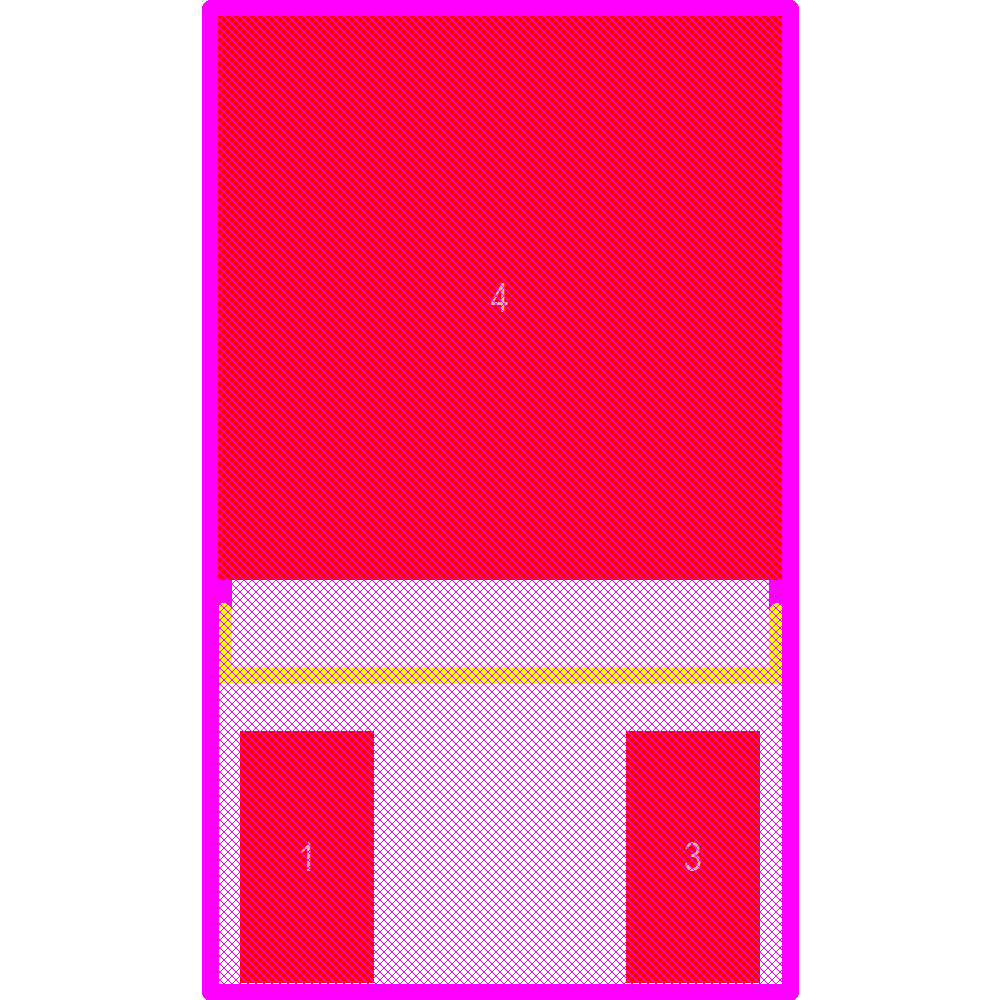

STD5N20LT4 Footprint - STMicroelectronics

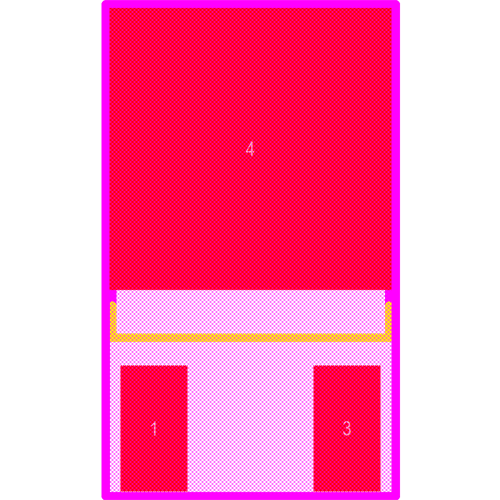

STD5N20LT4 Footprint - STMicroelectronics
