Discrete Semiconductors  >  Transistors  >  MOSFETs

STMicroelectronics - STW7N95K3

STW7N95K3 - STMicroelectronics

N-channel 950 V, 1.1 Ohm, 7.2 A, TO-247, Zener-protected SuperMESH3; Power MOSFET

 Datasheets

Technical Details

Case/Package TO-247
China RoHS Non-Compliant
Continuous Drain Current (ID) 7.2A
Country of Origin Mainland China
Drain to Source Breakdown Voltage 950V
Drain to Source Resistance 1.35Ω
Drain to Source Voltage (Vdss) 950V
Export Control Classification Number (ECCN) Code EAR99
Element Configuration Single
Fall Time 23ns
Gate to Source Voltage (Vgs) 30V
Height 20.15mm
Input Capacitance 1.031nF
Introduction Date 2009-01-29
Lead Free Lead Free
Length 15.75mm
Lifecycle Status Production
Max Operating Temperature 150°C
Max Power Dissipation 150W
Min Breakdown Voltage 950V
Min Operating Temperature -55°C
Mount Through Hole
Number of Elements 1
Number of Pins 3
Number of Terminals 3
Power Dissipation 150W
Radiation Hardening No
Rds On Max 1.35Ω
REACH SVHC No
Resistance 1.35Ω
Rise Time 9ns
RoHS Compliant
Schedule B 8541290080
Turn-Off Delay Time 36ns
Turn-On Delay Time 14ns
Width 5.15mm

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No
   REACH SVHC : No

Images

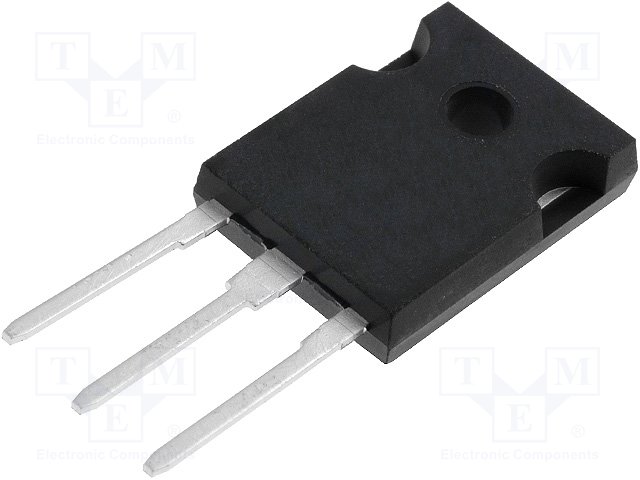

STMicroelectronics STW7N95K3 | TME

TME

Datasheets

 DigiKey
 Mouser
 TME

Lifecycle Status Indicator

   Production

Alternatives (Possible Substitutes)

Manufacturer Manufacturer Part No. Lifecycle Status Indicator Confidence
STMicroelectronics
STW8NC90Z
Obsolete
STMicroelectronics
STB9NK90Z
Production
STMicroelectronics
STP7N95K3
Production
STMicroelectronics
STW8NA80
Obsolete
Infineon
SPW47N60C2
Obsolete
STMicroelectronics
STW12NK90Z
Production
STMicroelectronics
STW42N65M5
Production
STMicroelectronics
STW55NM50N
Obsolete
Fairchild Semiconductor
FDH45N50F
Obsolete
STMicroelectronics
STW12NM60N
Obsolete

See more alternatives See less alternatives
