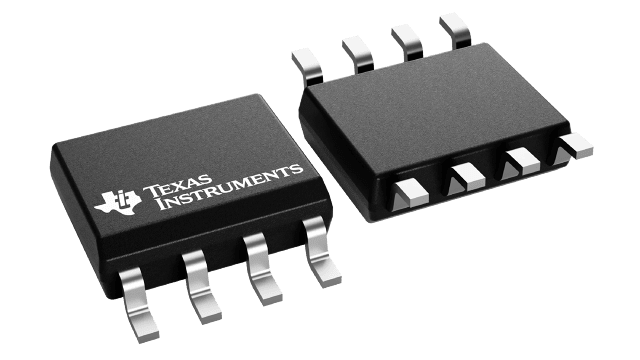

TL3695DRG4 - Texas Instruments
EAR99 TL3695 Tape & Reel (TR) RS422RS485 interface receiver 5V 0.00002A 72.603129mg 37ns
Technical Details
| Case/Package | SOIC |
| Data Rate | 10Mbps |
| Height | 1.75mm |
| Lead Free | Lead Free |
| Length | 4.9mm |
| Lifecycle Status | Production |
| Logic Function | Transceiver |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Operating Temperature | 70°C |
| Max Supply Voltage | 5.25V |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 4.75V |
| Nominal Supply Current | 50mA |
| Number of Circuits | 1 |
| Number of Drivers | 1 |
| Number of Pins | 8 |
| Number of Receivers | 1 |
| Number of Transceivers | 1 |
| Number of Transmitters | 1 |
| Operating Supply Voltage | 5V |
| Packaging | Tape and Reel |
| RoHS | Compliant |
| Simplex/Duplex | Half Duplex |
| Thickness | 1.58mm |
| Weight | 72.603129mg |
| Width | 3.91mm |
Compliance
RoHS : Unconfirmed

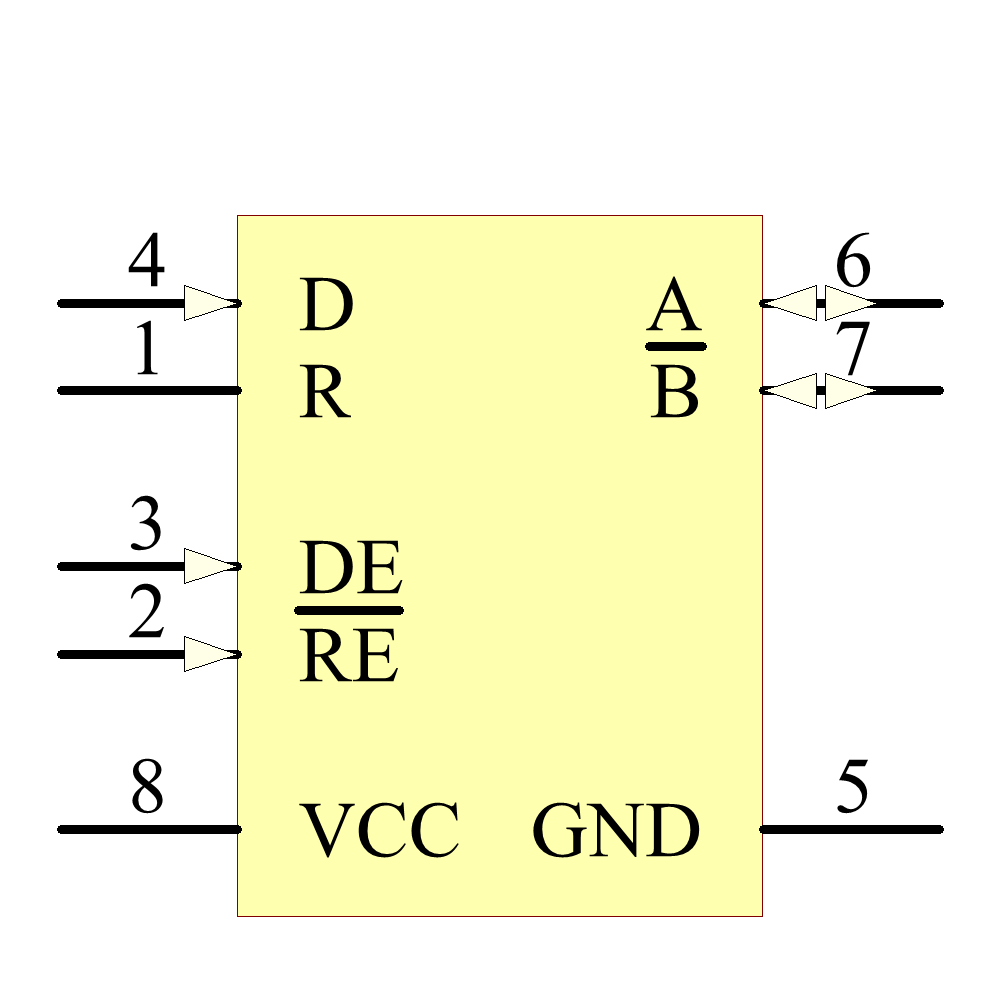

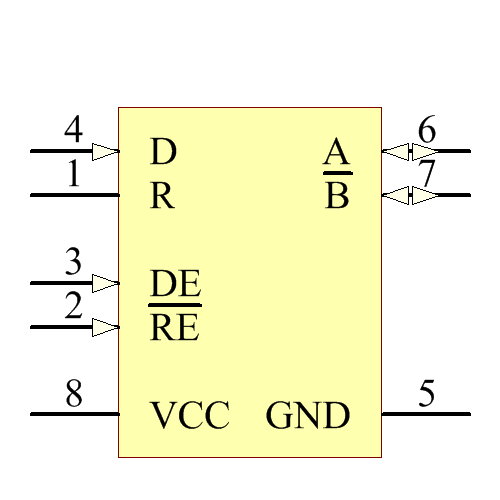

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Obsolete | ||
| Texas Instruments | Production | ||
| Texas Instruments | Unknown |
