Circuit Protection  >  TVS Diodes

Vishay - 1.5KE18A-E3/54

1.5KE18A-E3/54 - Vishay

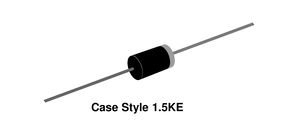

1500 W 25.2 Vcl Uni-Directional Axial Through Hole TVS Diode - 1.5KE

 Datasheets

Technical Details

Breakdown Voltage 18V
China RoHS Non-Compliant
Clamping Voltage 25.2V
Country of Origin Mainland China
Direction Unidirectional
Export Control Classification Number (ECCN) Code EAR99
Element Configuration Single
Forward Voltage 3.5V
Height 5.3mm
Harmonized Tariff Schedule (HTS) Code 8541.10.00.50
Introduction Date 2006-01-03
Lead Free Lead Free
Leakage Current 1µA
Length 9.5mm
Lifecycle Status Production
Max Breakdown Voltage 18.9V
Max Operating Temperature 175°C
Max Power Dissipation 6.5W
Max Reverse Leakage Current 1µA
Max Surge Current 59.5A
Min Breakdown Voltage 17.1V
Min Operating Temperature -55°C
Mount Through Hole
Number of Channels 1
Number of Elements 1
Number of Pins 2
Number of Terminals 2
Operating Supply Voltage 15.3V
Packaging Cut Tape
Peak Pulse Current 59.5A
Peak Pulse Power 1.5kW
Peak Reverse Current 1µA
Polarity Unidirectional
Power Dissipation 1.5kW
Radiation Hardening No
REACH SVHC No
Reverse Breakdown Voltage 17.1V
Reverse Standoff Voltage 15.3V
RoHS Compliant
Schedule B 8541100080
Termination Axial
Test Current 1mA
Width 5.3mm

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No
   REACH SVHC : No

Images

Vishay 1.5KE18A-E3/54 | RS

RS

Datasheets

 RS
 RS
 RS

Lifecycle Status Indicator

   Production

Alternatives (Possible Substitutes)

Manufacturer Manufacturer Part No. Lifecycle Status Indicator Confidence
onsemi
1.5KE18ARL4
Obsolete
EIC Semiconductor
1N6277A
Production
Taiwan Semiconductor
1.5KE18A R0G
Production
STMicroelectronics
1.5KE18P
Obsolete
Central Semiconductor
1.5CE18A BK PBFREE
Unknown
Semikron
1.5KE18A
Unknown
onsemi
1N6277ARL4
Obsolete
NTE Electronics
NTE4926
Obsolete
EIC Semiconductor
1.5KE18A
Production
Rectron
1.5KE18A
Production

See more alternatives See less alternatives
