Technical Details
| Case/Package | TO-247-3 |
| Continuous Drain Current (ID) | 5.4A |
| Current Rating | 5.4A |
| Drain to Source Breakdown Voltage | 800V |
| Drain to Source Resistance | 2Ω |
| Drain to Source Voltage (Vdss) | 800V |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Fall Time | 32ns |
| Gate to Source Voltage (Vgs) | 20V |
| Height | 20.7mm |
| Input Capacitance | 1.9nF |
| Introduction Date | 1993-09-01 |
| Lead Free | Lead Free |
| Length | 15.87mm |
| Lifecycle Status | Obsolete |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 150W |
| Min Breakdown Voltage | 800V |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Nominal Vgs | 4V |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Pins | 3 |
| Number of Terminals | 3 |
| Packaging | Bulk |
| Power Dissipation | 150W |
| Radiation Hardening | No |
| Rds On Max | 2Ω |
| REACH SVHC | Yes |
| Recovery Time | 830ns |
| Resistance | 2Ω |
| Rise Time | 36ns |
| RoHS | Compliant |
| Schedule B | 8541290080, 8541290080|8541290080|8541290080|8541290080|8541290080 |
| Turn-Off Delay Time | 100ns |
| Turn-On Delay Time | 16ns |
| Voltage Rating (DC) | 800V |
| Weight | 38.000013g |
| Width | 5.31mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

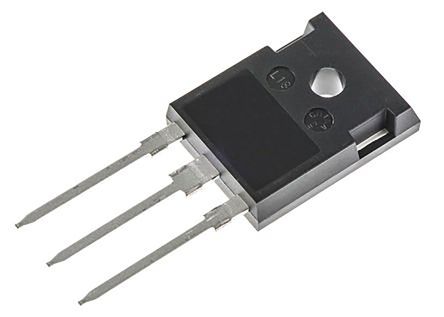

Images
