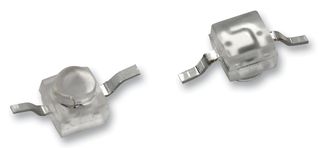

VSMG2000X01 - Vishay
VISHAY VSMG2000X01 Infrared Emitter, High Speed, 200 mA, 20 ns, 20 ns, 12 , -40 C
Technical Details
| Case/Package | SMD/SMT |
| Depth | 2.2mm |
| Forward Current | 100mA |
| Forward Voltage | 1.7V |
| Harmonized Tariff Schedule (HTS) Code | 8541.40.20.00 |
| Introduction Date | 2010-03-02 |
| Length | 2.2mm |
| Lens Style | Circular, Dome |
| Lifecycle Status | Obsolete |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Number of LEDs | 1 |
| Number of Pins | 2 |
| Orientation | Top View |
| Output Power | 40mW |
| Packaging | Tape and Reel |
| Peak Wavelength | 850nm |
| Power Dissipation | 170mW |
| Radiation Hardening | No |
| REACH SVHC | Unknown |
| Reverse Voltage | 5V |
| Rise Time | 20ns |
| RoHS | Compliant |
| Shape | Round |
| Test Current | 100mA |
| Viewing Angle | 24° |
| Wavelength | 850nm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Unknown
Images
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Farnell |
GB: 0
|
$ | 0.7145 | 0.6559 | 0.426 | 0.2613 | 0.2613 | |||
