Results 1 - 10 of 259272

⇆ Metric

Product Details					Compliance								Dimensions							Physical													Supply Chain					Technical
Image		Part Summary	Avg Price	Lifecycle Status	Ratings	Radiation Hardening	REACH SVHC	RoHS	China RoHS	Lead Free	Flammability Rating	ELV	Diameter	Height	Length	Actuator Length	Depth	Width	Actuator Diameter	Case/Package	Mount	Number of Pins	Weight	Contact Plating	Contact Material	Color	Mechanical Life	Housing Material	Actuator Material	Terminal Material	Dielectric Material	Material	Lifecycle Status	Harmonized Tariff Schedule (HTS) Code	Export Control Classification Number (ECCN) Code	Introduction Date	Max Operating Temperature	Min Operating Temperature	Throw Configuration	Max Voltage Rating (DC)	Max Current Rating	Sealable	Contact Current Rating	Electrical Life	Contact Voltage Rating (AC)	Contact Resistance	Termination	Insulation Resistance	Packaging	Voltage Rating (AC)	Current Rating	Voltage Rating (DC)	Switch Function	Operating Force	Illumination Type	Orientation	Number of Positions	Max Voltage Rating (AC)	Life (Cycles)	Type	Switch Travel	Voltage Rating	Contact Voltage Rating (DC)	Schedule B
					+filter	+filter	+filter	+filter	+filter	+filter	+filter	+filter	+filter	+filter	+filter	+filter	+filter	+filter	+filter	+filter	+filter	+filter	+filter	+filter	+filter	+filter	+filter	+filter	+filter	+filter	+filter	+filter	+filter	+filter	+filter	+filter	+filter	+filter	+filter	+filter	+filter	+filter	+filter	+filter	+filter	+filter	+filter	+filter	+filter	+filter	+filter	+filter	+filter	+filter	+filter	+filter	+filter	+filter	+filter	+filter	+filter	+filter	+filter	+filter
		C&K Components NE182UEEP6AMP	USD 6.89 All Prices	Production	Dust Proof		Yes	Compliant			UL94 V-0									0101	Through Hole			Silver				Polyester					Production						DPDT			DUST PROOF, EPOXY TERMINAL SEALED	6 A	10 kcycles	250 V	50 mΩ	PC Pin			250 V	6 A	100 V	On-On	7 N					10 kcycles
		TE Connectivity 2-1825910-6	USD 0.131 All Prices	Production			Yes	Compliant	Compliant	Lead Free		Compliant		3.61 mm	5.99 mm	9.398 mm					Through Hole			Silver	Copper	Black, Brown		Nylon	Nylon, Polyamide				Production	8536.50.90.40	EAR99	2008-01-30	85 °C	-35 °C	SPST	24 V	50 mA		50 mA	100 kcycles		100 mΩ	PC Pins, Solder		Bulk			24 V		980 mN	Illuminated	Straight	1		100 kcycles	Switch
		Panasonic ESB-33536	USD 1.18 All Prices	Production		No		Compliant		Lead Free				6 mm	9.85 mm	2.3 mm				SMD/SMT	Surface Mount												Production	8536.50.90.31	EAR99	2008-04-16			DPDT	14 V	200 mA		200 mA				Solder		Tape and Reel			14 V		4 N		Straight	2		30 kcycles
		Schurter 1241.1104.7091	USD 6.865 All Prices	Production	Dust Tight, IP65, Water Resistant	No	Yes	Compliant		Lead Free				4 mm	18 mm		18 mm				Panel, Snap-In				Silver		1 Mcycles					Plastic	Production				60 °C	-25 °C	SPST	48 V	125 mA		125 mA	1 Mcycles		50 mΩ	Solder				125 mA	48 V	Off-Mom	3 N	Illuminated	Straight	2		1 Mcycles			48 V	48 V
		TE Connectivity 1571634-2	USD 0.3236 All Prices	Production		No	Yes	Compliant	Compliant	Lead Free		Compliant		9.49 mm	7.01 mm	2.3876 mm	10 mm			SMD/SMT	Surface Mount			Silver	Stainless Steel	Brown, Natural	5 Mcycles		Rubber, Silicone				Production	8536.50.90.31	EAR99	2007-07-16	85 °C	-35 °C	SPST	24 V	50 mA		50 mA	500 kcycles		100 mΩ	Gull Wing		Tape & Reel	250 V	50 mA	24 V	Off-Mom	1.568 N	Illuminated, Non-Illuminated	Straight	2		5 Mcycles	Switch
		E-Switch LC1258EENP	USD 0.4059 All Prices	Production			Yes	Compliant		Lead Free				8.3 mm	12 mm	10.0076 mm					Through Hole			Silver	Bronze, Silver			Steel	Polyacetal	Brass	Phenolic		Production	8536.50.70.00	EAR99	2002-06-24	85 °C	-20 °C	SPDT	30 V	300 mA	MOLDED	300 mA	10 kcycles		100 mΩ	PC Pin				300 mA	30 V	On-On	3.24 N		Right Angle	2		10 kcycles
		TE Connectivity 4-1437565-1	USD 0.108 All Prices	Production			Yes	Compliant	Compliant	Lead Free				3.6 mm	6 mm	1.397 mm		6 mm		SMD/SMT	Surface Mount			Silver	Copper	Black, Brown	100 kcycles	Polyamide	Polyamide				Production	8536.50.70.00	EAR99	2004-09-01	85 °C	-35 °C	SPST	24 V	50 mA		50 mA	100 kcycles		100 mΩ	Gull Wing	100 MΩ	Bulk		50 mA	24 V	Off-Mom	1.568 N	Illuminated, Non-Illuminated	Straight	1		100 kcycles	Switch	250 µm	24 V
		APEM IZPR3P422	USD 24.705 All Prices	Production	Dust Tight, IP67, Waterproof		No	Compliant			UL94 V-0			11 mm	16 mm	2 mm			16 mm		Panel, Through Hole			Gold, Silver	Silver		1 Mcycles		Polyamide				Production				85 °C	-40 °C	SPST	48 V	200 mA	EPOXY TERMINAL SEALED, IP67	200 mA	500 kcycles	250 V	100 mΩ	PC Pin		Bulk	250 V	200 mA	48 V	Off-Mom	8 N	Illuminated	Straight		250 V	500 kcycles

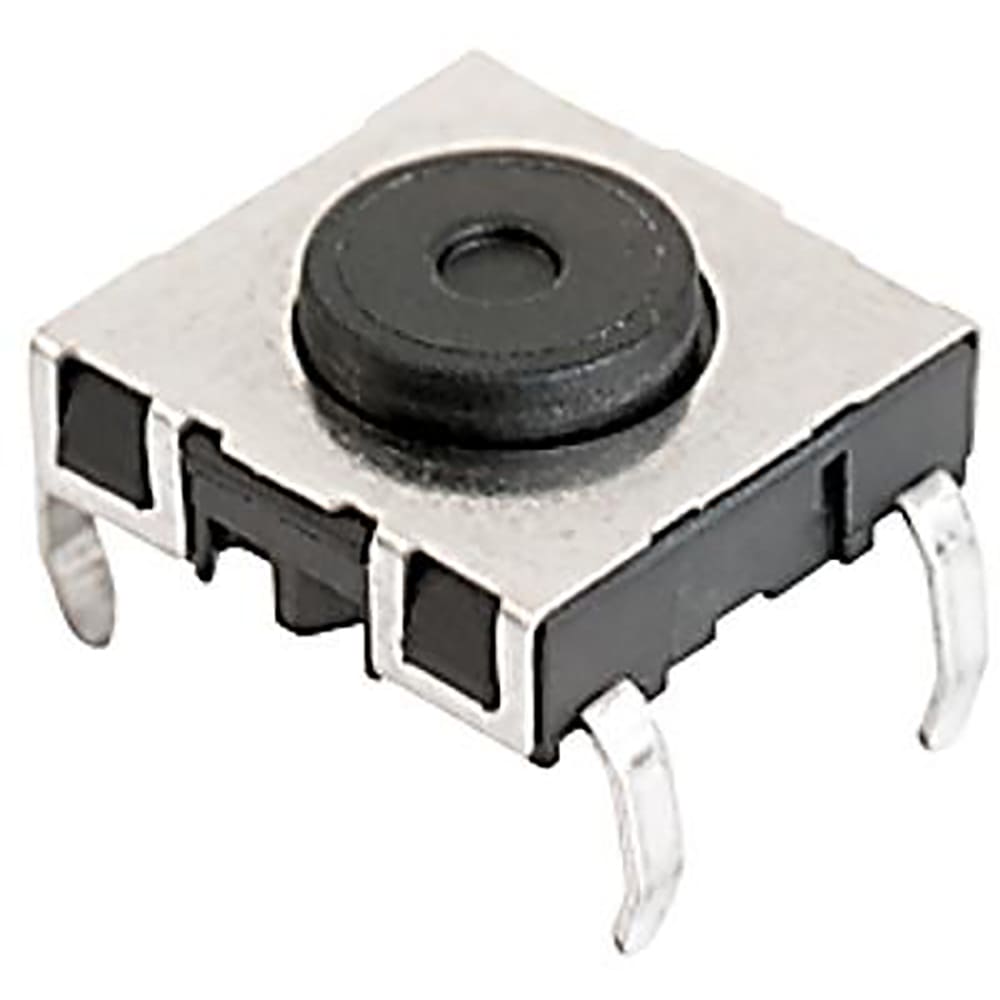

		Schurter 1241.1625.8	USD 3.2089 All Prices	Production	Dust Tight, IP67, Waterproof	No	Yes	Compliant	Compliant					7.6 mm							Through Hole		99.988768 mg	Tin			1 Mcycles		Polyphenylene				Production				85 °C	-40 °C	SPST	42 V	50 mA		50 mA			50 mΩ	PC Pin			30 V	50 mA	42 V	Off-Mom	2.2 N	Non-Illuminated		1	30 V	1 Mcycles		350 µm
		TE Connectivity 1825965-1	USD 0.1176 All Prices	Production			Yes	Compliant	Compliant	Lead Free		Compliant		3.5 mm	6 mm	1.52 mm	6.5 mm				Through Hole			Silver		Black, Natural	100 kcycles	Nylon	PBT, Polybutylene				Production	8536.50.70.00	EAR99	2020-10-12	85 °C	-35 °C	SPST	24 V	50 mA		50 mA	100 kcycles		50 mΩ	PC Pin, PC Pins		Bulk		50 mA	24 V	Off-Mom	1.274 N	Illuminated, Non-Illuminated	Straight	1		100 kcycles	Switch	250 µm			8536509065, 8536509065\|8536509065\|8536509065\|8536509065\|8536509065
