Infineon - IRF5210STRLPBF

IRF5210STRLPBF - Infineon

MOSFET, Power; P-Ch; VDSS -100V; RDS(ON) 60 Milliohms; ID -38A; D2Pak; PD 170W; -55degc

 Datasheets

Technical Details

Case/Package D2PAK
China RoHS Non-Compliant
Contact Plating Tin
Continuous Drain Current (ID) 38A
Country of Origin Mainland China
Drain to Source Breakdown Voltage -100V
Drain to Source Resistance 60mΩ
Drain to Source Voltage (Vdss) -100V
Dual Supply Voltage 100V
Export Control Classification Number (ECCN) Code EAR99
Element Configuration Single
Fall Time 55ns
Gate to Source Voltage (Vgs) 20V
Height 4.826mm
Input Capacitance 2.78nF
Introduction Date 1996-08-14
Lead Free Lead Free
Length 10.668mm
Lifecycle Status Production
Max Junction Temperature (Tj) 150°C
Max Operating Temperature 150°C
Max Power Dissipation 170W
Min Breakdown Voltage 100V
Min Operating Temperature -55°C
Mount Surface Mount
Nominal Vgs 4V
Number of Elements 1
Number of Pins 3
Number of Terminals 2
On-State Resistance 60mΩ
Package Quantity 800
Packaging Cut Tape
Power Dissipation 3.1W
Radiation Hardening No
Rds On Max 60mΩ
REACH SVHC No
Resistance 60mΩ
Rise Time 63ns
RoHS Compliant
Schedule B 8541290080, 8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|85
Termination SMD/SMT
Threshold Voltage -4V
Turn-Off Delay Time 72ns
Turn-On Delay Time 14ns
Width 9.65mm

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No
   REACH SVHC : No

Images

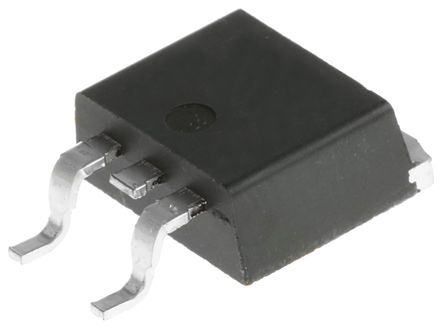

Infineon IRF5210STRLPBF | RS

RS

Datasheets

 RS
 RS
 RS

Lifecycle Status Indicator

   Production

Alternatives (Possible Substitutes)

Manufacturer Manufacturer Part No. Lifecycle Status Indicator Confidence
Infineon
AUIRF5210STRL
Obsolete
Infineon
AUIRF5210S
Obsolete
Infineon
IRF5210STRRPBF
Obsolete
Infineon
IRF5210SPBF
Obsolete
International Rectifier
IRF5210STRLHR
Obsolete
Littelfuse
IXTA52P10P
Production
Infineon
IRF5210PBF
Production
Infineon
IRF5210LPBF
Obsolete
Fairchild Semiconductor
FQB9P25
Obsolete
Fairchild Semiconductor
SFW9640
Obsolete

See more alternatives See less alternatives

Authorized Distributors

Distributor SKU Stock USD 1 10 50 100 1000 10000 Buy
RS
8312825P
DE: 3280
 $ 2.6085 2.6085 2.6085 2.6085 2.6085
 Historical Pricing  Historical Stock Levels
Quantity
Location
RS
1655892
DE: 3280
 $ 1.6457 1.6457
 Historical Pricing  Historical Stock Levels
Quantity
Location
RS
8312825
DE: 50
 $ 2.6085 2.6085 2.6085 2.6085 2.6085
 Historical Pricing  Historical Stock Levels
Quantity
Location
Farnell
1298529RL
DE: 21809
 $ 1.9601 1.6395 1.6395
 Historical Pricing  Historical Stock Levels
Quantity
Location
Farnell
1298529
DE: 21809
 $ 4.253 2.0217 2.0217 1.9601 1.6395 1.6395
 Historical Pricing  Historical Stock Levels
Quantity
Location
Future Electronics
5173864
CA: 31200
 $ 1.39 1.37
 Historical Pricing  Historical Stock Levels
Quantity
Location
Future Electronics
2287456
CA: 0
 $ 1.39 1.37
 Historical Pricing  Historical Stock Levels
Quantity
Location
Chip One Stop
IRF5210STRLPBF
JP: 2040
 $ 2.14 1.62 1.32 1.32 1.32 1.32
 Historical Pricing  Historical Stock Levels
Quantity
Location
Rutronik
TMOSP11801
DE: 800
 $ 1.70 1.36
 Historical Pricing  Historical Stock Levels
Quantity
Location
Rochester Electronics
IRF5210STRLPBF
US: 112
 $ 1.41 1.34 1.20 1.13
 Historical Pricing  Historical Stock Levels
Quantity
Location
Avnet
IRF5210STRLPBF
US: 98400
 $ 1.2486 1.0615
 Historical Pricing  Historical Stock Levels
Quantity
Location
Avnet
40M7918
US: 3053
 $ 5.31 3.29 3.00 2.84 2.73 2.73
 Historical Pricing  Historical Stock Levels
Quantity
Location
Arrow Electronics
IRF5210STRLPBF
US: 94400
 $ 1.2504 1.2379
 Historical Pricing  Historical Stock Levels
Quantity
Location
DigiKey
IRF5210STRLPBFCT-ND
DE: 9458
 $ 4.5981 3.0227 3.0227 4.5981 4.5981 4.5981
 Historical Pricing  Historical Stock Levels
Quantity
Location
DigiKey
IRF5210STRLPBFDKR-ND
DE: 9458
 $ 4.5981 3.0227 3.0227 4.5981 4.5981 4.5981
 Historical Pricing  Historical Stock Levels
Quantity
Location
DigiKey
IRF5210STRLPBFTR-ND
DE: 9430
 $ 1.6541 1.4133
 Historical Pricing  Historical Stock Levels
Quantity
Location
Mouser
942-IRF5210STRLPBF
US: 21748
 $ 3.97 2.61 2.61 1.83 1.53 1.53
 Historical Pricing  Historical Stock Levels
Quantity
Location
EBV Elektronik
SP001554020
EU: 44000
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
Newark
IRF5210STRLPBF
US: 3053
 $ 2.13 1.95 1.80 1.80 1.80 1.80
 Historical Pricing  Historical Stock Levels
Quantity
Location
element14 APAC
2125132
SG: 3053
 $ 3.9004 2.0792 2.0792 1.8971 1.5556 1.5556
 Historical Pricing  Historical Stock Levels
Quantity
Location

Non-Authorized Distributors

Distributor SKU Stock USD 1 10 50 100 1000 10000 Buy
Microchip USA
IRF5210STRLPBF
US: 128
 $ 24.5364 24.4602
 Historical Pricing  Historical Stock Levels
Quantity
Location
Component Stockers USA
IRF5210STRLPBF
US: 81111
 $ 1.94 1.75 1.75 1.43 1.13 1.21
 Historical Pricing  Historical Stock Levels
Quantity
Location
Weyland Electronics Group Pte. Ltd.
IRF5210STRLPBF
SG: 12844
 $ 0.548 0.548 0.548 0.548 0.548 0.548
 Historical Pricing  Historical Stock Levels
Quantity
Location
Win Source
159558-IRF5210STRLPBF
CN: 31300
 $ 0.6714 0.4476 0.4476
 Historical Pricing  Historical Stock Levels
Quantity
Location
Worldway Electronics
IRF5210STRLPBF
HK: 20922
 $ 0.3604 0.3604 0.3432 0.3432 0.3432
 Historical Pricing  Historical Stock Levels
Quantity
Location
Classic Components
IRF5210STRLPBF
US: 10608
 $ 0.60 0.60 0.60
 Historical Pricing  Historical Stock Levels
Quantity
Location
Classic Components
IRF5210STRLPBF
US: 3264
 $ 0.60 0.60 0.60
 Historical Pricing  Historical Stock Levels
Quantity
Location
Classic Components
IRF5210STRLPBF
US: 1597
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
Classic Components
IRF5210STRLPBF
US: 816
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
NetSource Technology
IRF5210STRLPBF
US: 684
 $ 0.90 0.90 0.90 0.90 0.90 0.90
 Historical Pricing  Historical Stock Levels
Quantity
Location
Jak Electronics
IRF5210STRLPBF
HK: 4277
 $ 1.1631 1.0973 1.0973 1.0352 0.9213 0.8692
 Historical Pricing  Historical Stock Levels
Quantity
Location
Maritex
IRF5210STRLPBF
PL: 26605
 $ 3.1564 1.3477 1.3477 1.3477 1.2175 1.2175
 Historical Pricing  Historical Stock Levels
Quantity
Location
UnikeyIC
IRF5210STRLPBF
SG: 50400
 $ 0.5485 0.5257
 Historical Pricing  Historical Stock Levels
Quantity
Location
Fmall Co., Limited
IRF5210STRLPBF
HK: 39460
 $ 1.3174 1.3174 1.3174 1.2324 1.1616 1.0625
 Historical Pricing  Historical Stock Levels
Quantity
Location
LCSC
C2622
CN: 6066
 $ 1.0734 0.8892 0.7978 0.7065 0.5479 0.5479
 Historical Pricing  Historical Stock Levels
Quantity
Location
Verical
IRF5210STRLPBF
US: 94400
 $ 1.2669 1.2543
 Historical Pricing  Historical Stock Levels
Quantity
Location
Verical
IRF5210STRLPBF
US: 2040
 $ 1.62 1.62 1.62 1.62
 Historical Pricing  Historical Stock Levels
Quantity
Location
Eurochip Technologies LTD
IRF5210STRLPBF
IL: 56875
 $ 1.226 1.226 1.226 1.226 1.226 1.226
 Historical Pricing  Historical Stock Levels
Quantity
Location
Bettlink
IRF5210STRLPBF
HK: 29820
 $ 1.5674 1.3749 1.3749 1.2499 1.102 1.0397
 Historical Pricing  Historical Stock Levels
Quantity
Location
Ansinor
IRF5210STRLPBF
CN: 29025
 $ 3.4525 3.4525 1.6134 1.2667 1.167
 Historical Pricing  Historical Stock Levels
Quantity
Location
Chipsmall Limited
IRF5210STRLPBF
CN: 28006
 $ 1.1553 0.7702 0.7702 0.4621 0.3851 0.3851
 Historical Pricing  Historical Stock Levels
Quantity
Location
SHENGYU ELECTRONICS
IRF5210STRLPBF
CN: 22157
 $ 0.3675 0.3601 0.3601 0.35 0.34 0.32
 Historical Pricing  Historical Stock Levels
Quantity
Location
Anlinkda
IRF5210STRLPBF
HK: 19471
 $ 1.158 1.037 1.037 0.943 0.854 0.752
 Historical Pricing  Historical Stock Levels
Quantity
Location
AERI
IRF5210STRLPBF
US: 9283
 $ 1.539 1.446
 Historical Pricing  Historical Stock Levels
Quantity
Location
GoKey Chip Technology Co. Inc.
IRF5210STRLPBF
CN: 4146
 $ 0.8148 0.8148 0.8148 0.8148 0.8148
 Historical Pricing  Historical Stock Levels
Quantity
Location
ALLICDATA ELECTRONICS
IRF5210STRLPBF
HK: 1000
 $ 0.8667 0.7511 0.7511 0.6067 0.5778 0.5489
 Historical Pricing  Historical Stock Levels
Quantity
Location
Quest
IRF5210STRLPBF
US: 231
 $ 3.20 2.40 1.20 1.20 1.12 1.12
 Historical Pricing  Historical Stock Levels
Quantity
Location
Vigor Components
IRF5210STRLPBF
SG: 10
 $ 2.52 2.52 2.52 2.52 2.52 2.52
 Historical Pricing  Historical Stock Levels
Quantity
Location
Schukat
IRF5210SPBF-GURT
DE: 5020
 $ 2.44 1.83 1.83 1.52 1.52
 Historical Pricing  Historical Stock Levels
Quantity
Location
TME
IRF5210STRLPBF
PL: 961
 $ 3.5996 1.7628 1.6642 1.5779 1.5779 1.5779
 Historical Pricing  Historical Stock Levels
Quantity
Location
ODG (Origin Data Global)
IRF5210STRLPBF
CN: 79382
 $ 0.646 0.5168 0.5168
 Historical Pricing  Historical Stock Levels
Quantity
Location
Heisener Electronics
IRF5210STRLPBF
CN: 32620
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
XingHuan International
IRF5210STRLPBF
CN: 27924
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
ComSIT Distribution GmbH
IRF5210STRLPBF
DE: 695
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
Suntronic
IRF5210STRLPBF
CN: 49241
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
Sourcengine
IRF5210STRLPBF
US: 155200
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
Sourcengine
IRF5210STRLPBF
US: 79
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
Chip One Stop Global
IRF5210STRLPBF
JP: 10
 $ 2.90 2.14 1.69
 Historical Pricing  Historical Stock Levels
Quantity
Location
Conrad
3026228
DE: 10
 $ 2.8969 2.8969 2.8969 2.8969 2.8969 2.8969
 Historical Pricing  Historical Stock Levels
Quantity
Location
Abacus Technologies
IRF5210STRLPBF
US: 0
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
NAC Semi
IRF5210STRLPBF
US: 33600
 $ 3.29 3.29
 Historical Pricing  Historical Stock Levels
Quantity
Location
NAC Semi
IRF5210STRLPBF
US: 19
 $ 7.85 7.85 7.85 7.85 7.85 7.85
 Historical Pricing  Historical Stock Levels
Quantity
Location
