SPB80N06S08ATMA1 - Infineon
MOSFET N-CH 55V 80A TO263-3 N-Channel 55 V 80A (Tc) 300W (Tc) Surface Mount PG-TO263-3-2
Technical Details
| Case/Package | TO-263-3 |
| China RoHS | Non-Compliant |
| Continuous Drain Current (ID) | 80A |
| Current Rating | 80A |
| Drain to Source Breakdown Voltage | 55V |
| Drain to Source Resistance | 7.7mΩ |
| Drain to Source Voltage (Vdss) | 55V |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Fall Time | 32ns |
| Gate to Source Voltage (Vgs) | 20V |
| Halogen Free | Halogen Free |
| Harmonized Tariff Schedule (HTS) Code | 8541.29.00.95 |
| Input Capacitance | 3.66nF |
| Introduction Date | 2004-11-30 |
| Lead Free | Contains Lead |
| Lifecycle Status | Obsolete |
| Max Dual Supply Voltage | 55V |
| Max Operating Temperature | 175°C |
| Max Power Dissipation | 300W |
| Min Breakdown Voltage | 55V |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of Pins | 3 |
| Number of Terminals | 2 |
| On-State Resistance | 8mΩ |
| Package Quantity | 1000 |
| Packaging | Tape & Reel |
| Power Dissipation | 300W |
| Rds On Max | 7.7mΩ |
| REACH SVHC | No |
| Rise Time | 53ns |
| RoHS | Compliant |
| Schedule B | 8541290080, 8541290080|8541290080|8541290080|8541290080|8541290080 |
| Turn-Off Delay Time | 54ns |
| Turn-On Delay Time | 22ns |
| Voltage Rating (DC) | 55V |
Compliance
RoHS : Unconfirmed
REACH SVHC : No

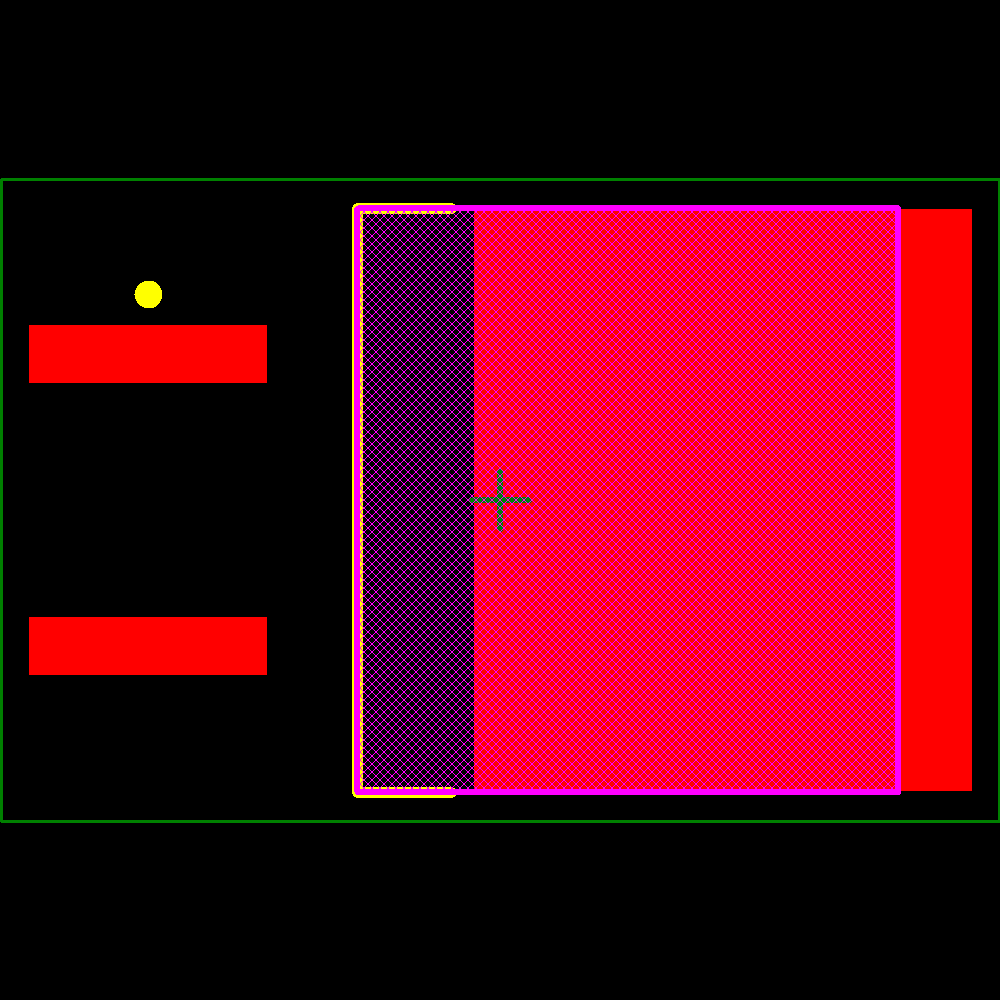

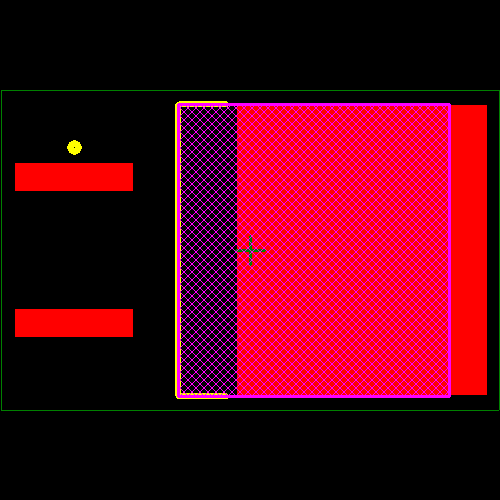

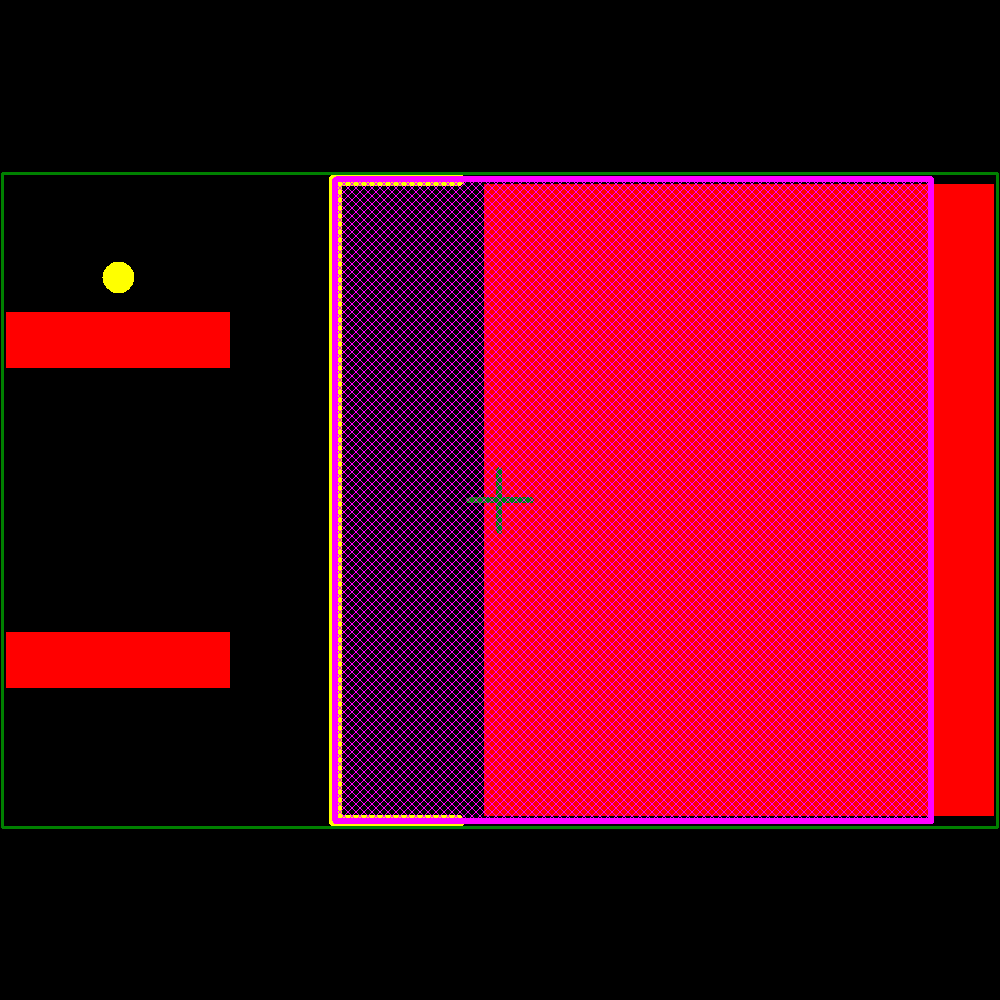

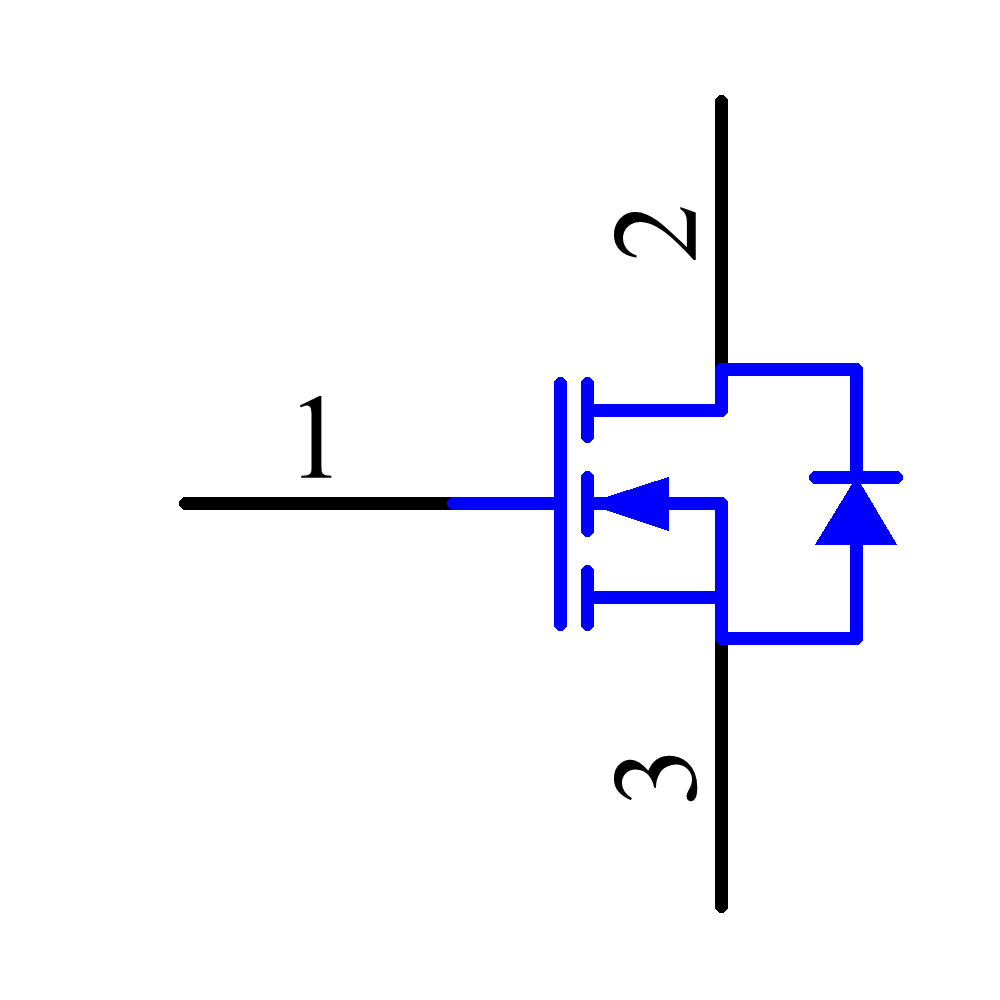

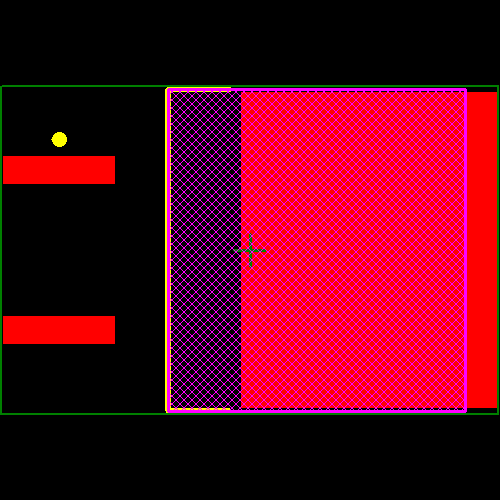

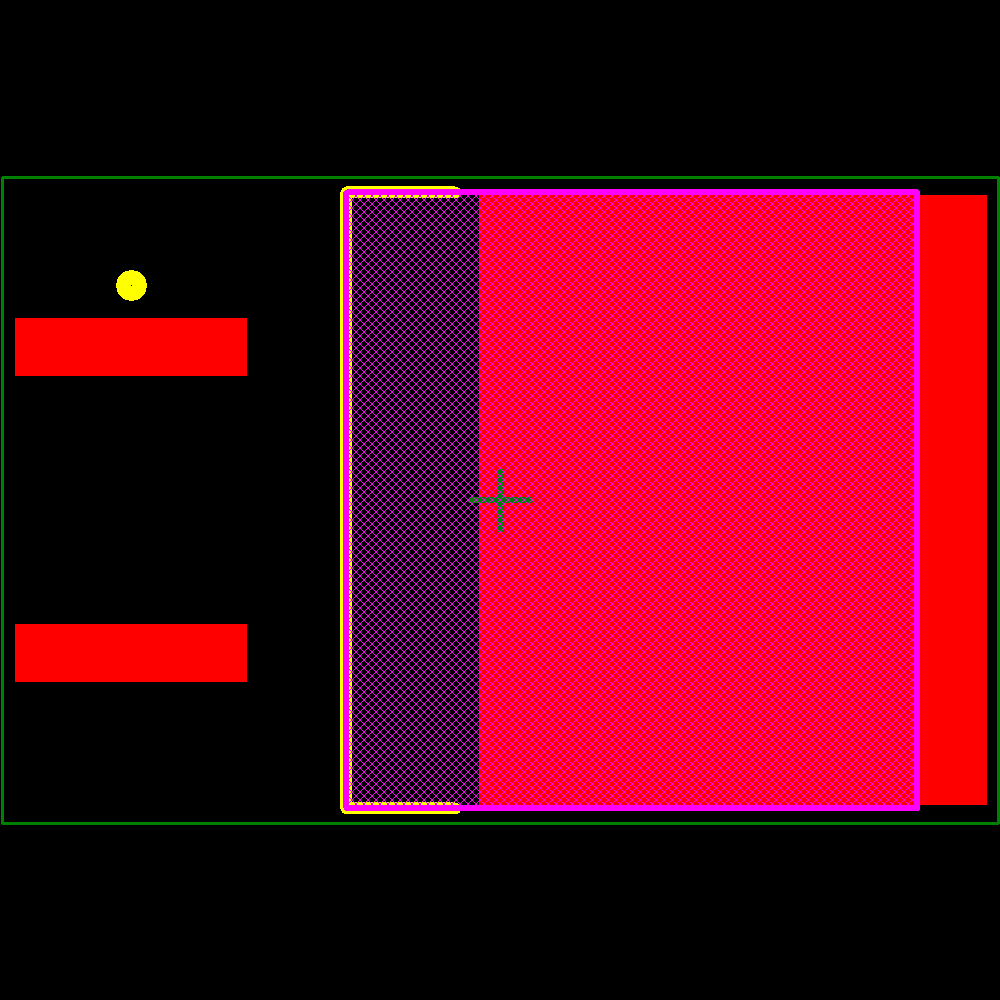

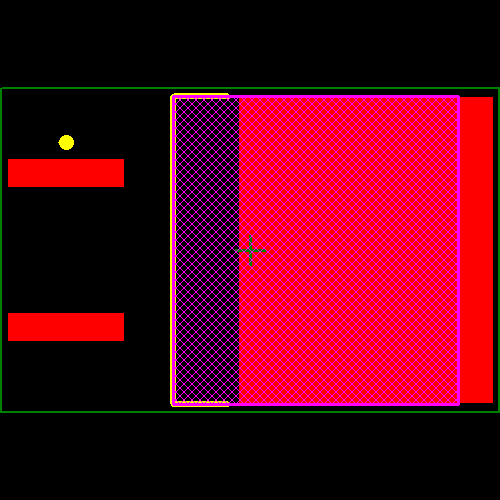

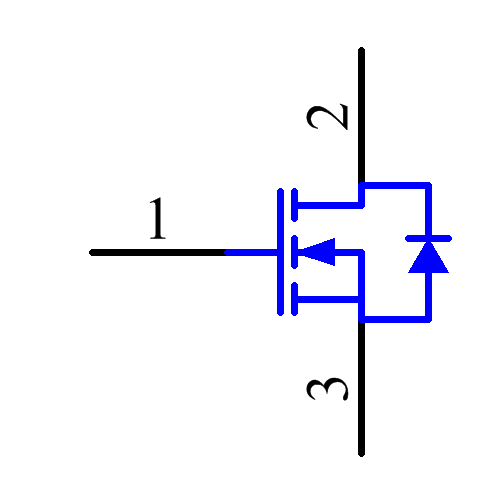

Images
Augswan
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Infineon | Production | ||
| STMicroelectronics | Obsolete | ||
| STMicroelectronics | Production | ||
| STMicroelectronics | Production | ||
| Infineon | Obsolete | ||
| STMicroelectronics | Production | ||
| STMicroelectronics | Production | ||
| STMicroelectronics | Obsolete | ||
| Infineon | Obsolete | ||
| Infineon | Obsolete |
