2SD1802S-E - onsemi
Bipolar Transistor, 50V, 3A, Low VCE(sat) NPN Single TP/TP-FA hFE = 140-280
Technical Details
| Case/Package | TO-251-3 |
| China RoHS | Non-Compliant |
| Collector Base Voltage (VCBO) | 60V |
| Collector Emitter Breakdown Voltage | 50V |
| Collector Emitter Voltage (VCEO) | 50V |
| Contact Plating | Tin Bismuth |
| Country of Origin | Mainland China |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Emitter Base Voltage (VEBO) | 6V |
| hFE Min | 100 |
| Introduction Date | 2012-04-25 |
| Lead Free | Lead Free |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Breakdown Voltage | 50V |
| Max Collector Current | 5A |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 1W |
| Min Operating Temperature | -55°C |
| Number of Pins | 3 |
| Packaging | Bulk |
| Polarity | NPN |
| REACH SVHC | No |
| RoHS | Compliant |
| Schedule B | 8541290080, 8541290080|8541290080, 8541290080|8541290080|8541290080, 8541290080|8541290080|8541290080|8541290080 |
| Transition Frequency | 150MHz |
Compliance
RoHS : Unconfirmed
REACH SVHC : No

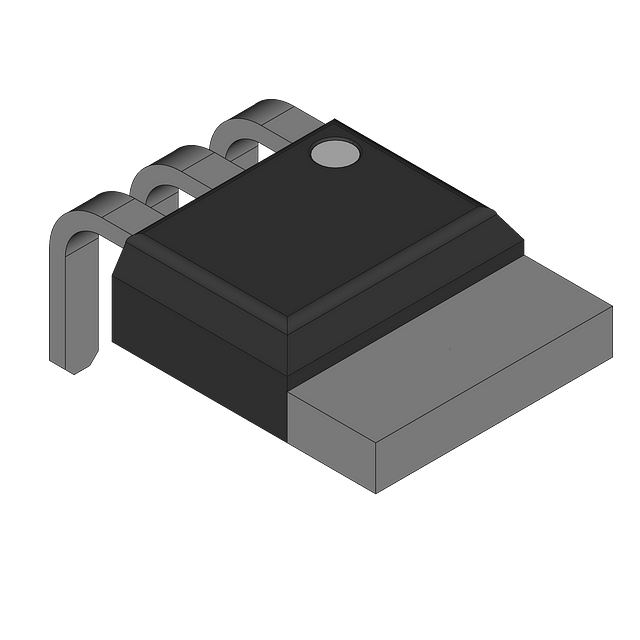

Images
Rochester Electronics
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Rochester Electronics |
US: 99120
|
$ | 0.2947 | 0.2446 | 0.2181 | |||||
| Avnet |
US: 3666
|
$ | 0.1716 | |||||||
| Flip Electronics |
US: 3666
|
$ | ||||||||
