Technical Details
| Case/Package | D2PAK |
| China RoHS | Non-Compliant |
| Continuous Drain Current (ID) | 80A |
| Country of Origin | Mainland China |
| Current Rating | 80A |
| Drain to Source Breakdown Voltage | 55V |
| Drain to Source Resistance | 8mΩ |
| Drain to Source Voltage (Vdss) | 55V |
| Dual Supply Voltage | 55V |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Fall Time | 45ns |
| Gate to Source Voltage (Vgs) | 20V |
| Height | 4.6mm |
| Input Capacitance | 5.3nF |
| Introduction Date | 2004-12-07 |
| Length | 10.4mm |
| Lifecycle Status | Production |
| Max Operating Temperature | 175°C |
| Max Power Dissipation | 300W |
| Min Breakdown Voltage | 55V |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Nominal Vgs | 3V |
| Number of Elements | 1 |
| Number of Pins | 3 |
| Number of Terminals | 2 |
| Packaging | Tape and Reel |
| Power Dissipation | 300W |
| Radiation Hardening | No |
| Rds On Max | 8mΩ |
| REACH SVHC | No |
| Resistance | 6.5mΩ |
| Rise Time | 150ns |
| RoHS | Compliant |
| Schedule B | 8541290080, 8541290080|8541290080|8541290080|8541290080|8541290080 |
| Termination | SMD/SMT |
| Threshold Voltage | 3V |
| Turn-Off Delay Time | 125ns |
| Turn-On Delay Time | 30ns |
| Voltage Rating (DC) | 55V |
| Width | 9.35mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No
Images

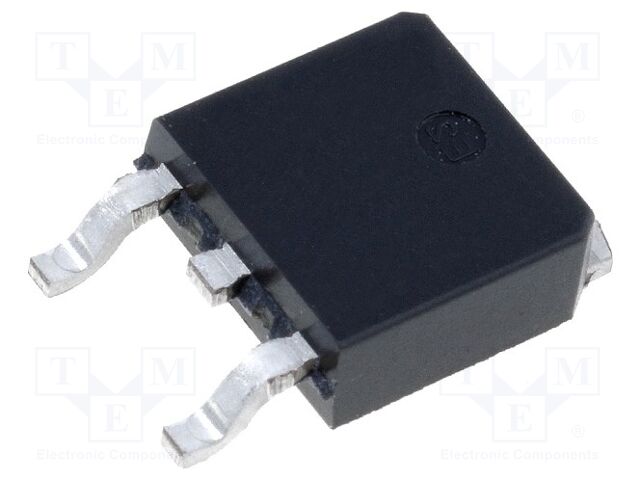

TME
