Discrete Semiconductors  >  Transistors  >  BJTs

onsemi - TIP111G

TIP111G - onsemi

Medium Power NPN Darlington Bipolar Power Transistor NPN , 2.0 A, 80 V

 Datasheets

Technical Details

Case/Package TO-220-3
China RoHS Non-Compliant
Collector Base Voltage (VCBO) 80V
Collector Emitter Saturation Voltage 2.5V
Collector Emitter Voltage (VCEO) 80V
Contact Plating Tin
Current Rating 2A
Element Configuration Single
Emitter Base Voltage (VEBO) 5V
Height 15.75mm
hFE Min 500
Lead Free Lead Free
Length 10.28mm
Lifecycle Status Production
Manufacturer Lifecycle Status ACTIVE
Max Breakdown Voltage 80V
Max Collector Current 2A
Max Operating Temperature 150°C
Max Power Dissipation 50W
Min Operating Temperature -65°C
Number of Elements 1
Number of Pins 3
Number of Terminals 3
Polarity NPN
Radiation Hardening No
REACH SVHC No
RoHS Compliant
Schedule B 8541290080, 8541290080|8541290080|8541290080|8541290080|8541290080
Transition Frequency 440MHz
Voltage Rating (DC) 80V
Weight 4.535924g
Width 4.82mm

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No
   REACH SVHC : No

Images

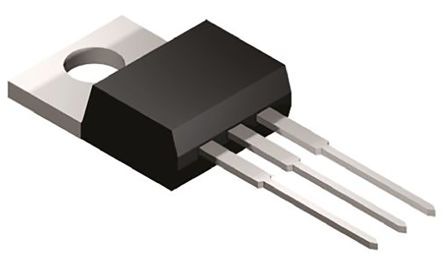

onsemi TIP111G | RS

RS

Datasheets

 RS
 RS
 Future Electronics

Lifecycle Status Indicator

   Production

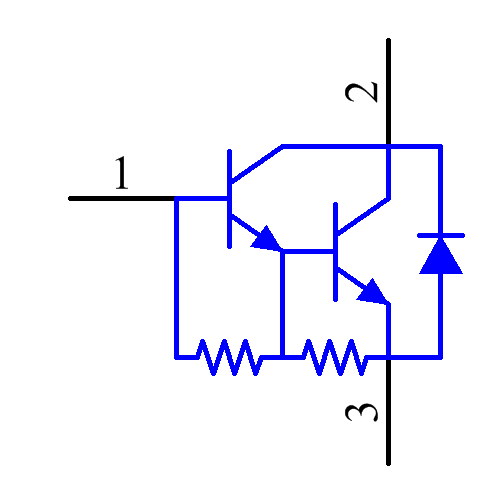

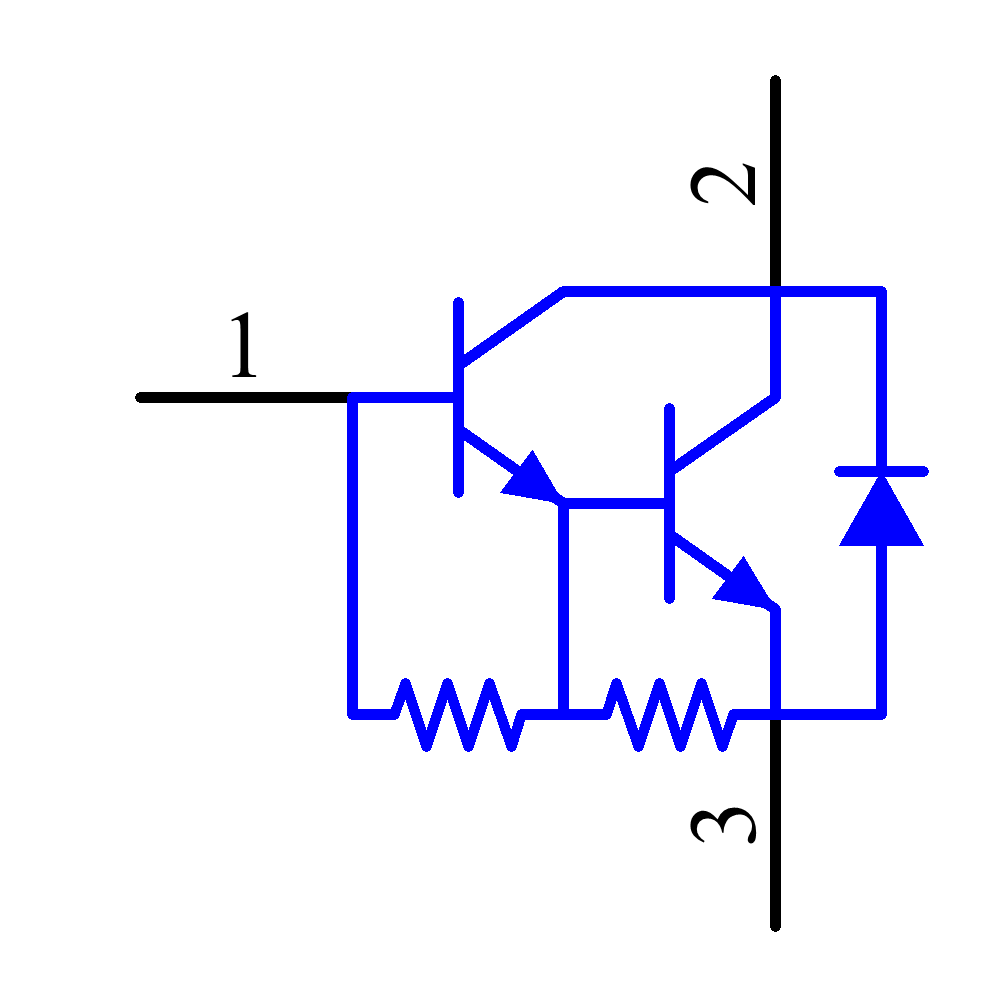

Symbol
Footprint

Alternatives (Possible Substitutes)

Manufacturer Manufacturer Part No. Lifecycle Status Indicator Confidence
STMicroelectronics
TIP111
Obsolete
onsemi
TIP111
Obsolete
Bourns
TIP111
Obsolete
Microchip
2N6213
Production
Microchip
JAN2N6213
Production
Microchip
JANTX2N6213
Production
Microchip
JANTXV2N6213
Production
onsemi
TIP120
Obsolete
Central Semiconductor
2N6053
Obsolete
Unitrode
JANTX2N5660
Obsolete

See more alternatives See less alternatives
